A Premier B2B Part Search

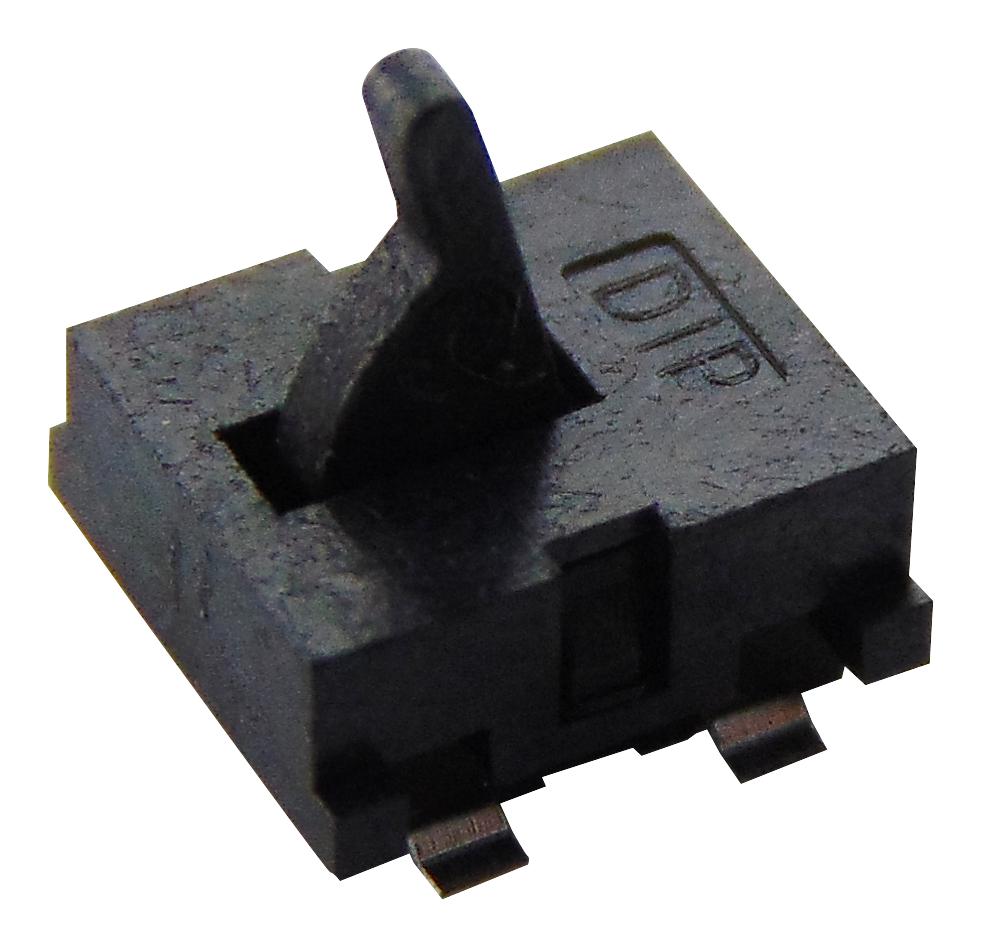

MULTICOMP PRO MCATE1V Card Detector Switch
This top actuated card detector switch by Multicomp Pro offers reliable performance for electronic safety and control applications. Designed for durability, it features a high-temperature thermoplastic housing in black, stainless steel contact discs with silver cladding, and a brass base with silver plating. Suitable for automation and electronic control systems, it operates at a temperature range of -10°C to +60°C, with an electrical life of 100,000 cycles. The switch's compact design includes a 3.9mm external height, 2.6mm width, and 1 pole, SPST-NO contact configuration, enabling precise operation in confined spaces.
MULTICOMP PRO MCATE1V Card Detector Switch Specifications:
- Maximum Operating Force: 40gf
- Maximum Stroke: 3.9mm (stem height 5.3mm)
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -20°C to +70°C
- External Height: 2.3mm
- External Width: 4.7mm
- External Depth: 3.8mm
- Electrical Life: 100,000 Cycles
- Rating: 1mA, 5V DC
- Maximum Contact Resistance: 710
- Minimum Insulation Resistance: 100MQ at 100V DC
- Dielectric Strength: 100V AC/1minute
- Rate Of Operating: 20 to 25 operations per minute
- Contact Arrangement: 1 pole
- Contact Configuration: SPST-NO
- Material: LCP High-temperature thermoplastic, stainless steel, brass, silver plating
- Color: Black
Buy the Buy Multicomp Pro Detector Switch Card Part Number MCATE1V Online
Order the Multicomp Pro detector switch MCATE1V online now to enhance your electronic control systems. This high-reliability, SPST-NO switch features a durable thermoplastic housing, stainless steel contact discs with silver cladding, and a compact design suitable for tight spaces. Rated for 100,000 cycles, it offers precise operation at temperatures from -10°C to +60°C with a minimum insulation resistance of 100MQ. Perfect for automation and safety circuits, ensuring dependable performance for long-term use.
Get Multicomp Pro MCATE1V today—built for precision, durability, and reliable electronic control applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCATE1V?
You can click on the BUY or RFQ button to purchase MCATE1V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCATE1V?
You can download the MCATE1V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCATE1V?
MULTICOMP PRO
