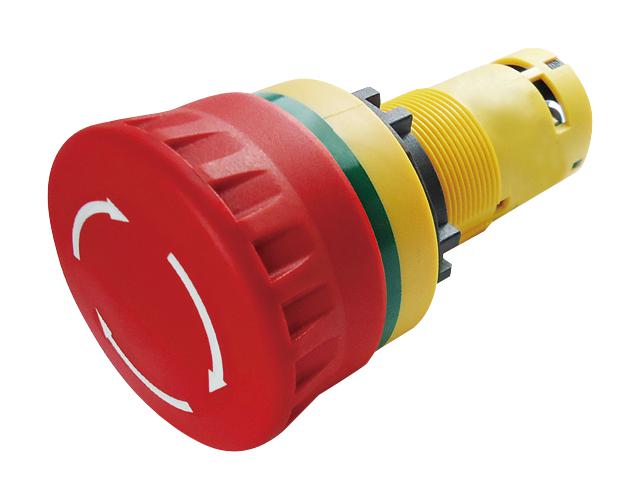

MULTICOMP PRO MCC2EBVE01R Emergency Stop Switch
The emergency stop switch is a robust, non-illuminated device with a 40mm diameter, designed for industrial safety applications. It features a red mushroom head with a pull/turn reset mechanism, suitable for panel thicknesses of 0.8mm to 12mm. The switch complies with IP66, Type 4X, and Type 13 protection ratings for outdoor or indoor use, offering a mechanical life of over 20 million operations and electrical durability exceeding 0.1 million operations. It supports contact ratings up to 5A at 300V, with varied configurations including 1NO, 1NC, 2NO, 2NC, and combination options, ensuring reliable performance in emergency shutdowns and safety interlocks.
MULTICOMP PRO MCC2EBVE01R Emergency Stop Switch Specifications:
- Mechanical Life: 20.25 million operations
- Electrical Life: >0.1 million operations
- Electrical Durability: 1,000,000 cycles AC-15 at 230V/1.6A
- Rated Insulation Voltage: 300V
- Rated Thermal Current: 5A
- Contact Resistance: 100mΩ max at 1A 6-8V DC
- Insulation Resistance: 100MΩ at 500V DC
- Dielectric Strength: 2000V AC for 1 min
- Panel Thickness: 0.8mm to 12mm
- Degree of Protection: IP66, Type 4X indoor & Type 13
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 45% to 85% RH
- Wire Diameter: 16~26 AWG, 0.2~1.5mm²
- Stripping Length: 8mm
- Torque: 1N·m
- Contact Ratings: AC-15 5A at 230V, 5A at 125V, AC-12 5A at 250V, DC-12 1A at 12V, 1A at 24V, DC-13 1A at 24V, 0.22A at 250V
Buy the Multicomp MCC2EBVE01R – Reliable Emergency Stop Switch for Industrial Applications
Purchase the robust emergency stop switch online today for reliable safety shutdowns in industrial environments. Designed with a 40mm red mushroom head, IP66 protection, and multiple contact configurations, it ensures durability and safety compliance. Suitable for panel thicknesses from 0.8mm to 12mm, supporting various electrical loads up to 5A at 300V. This device offers a mechanical life of 20 million operations, making it ideal for emergency interlocks, safety systems, and manufacturing safety protocols. Buy now to enhance your safety infrastructure easily and securely.
Get Multicomp MCC2EBVE01R today—built for precision and long-lasting durability in safety shutdowns.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCC2EBVE01R?
You can click on the BUY or RFQ button to purchase MCC2EBVE01R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCC2EBVE01R?
You can download the MCC2EBVE01R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCC2EBVE01R?
MULTICOMP PRO
