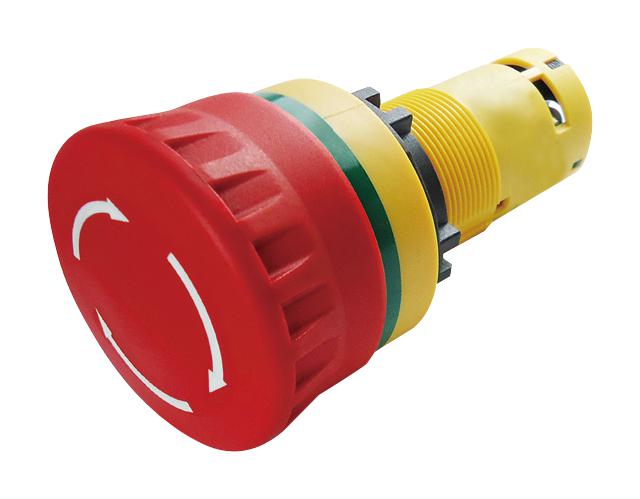

MULTICOMP PRO MCC2EBVE02R Emergency Stop Switch
The multicomp emergency stop switch is a robust, non-illuminated device designed for safety applications with a 40mm panel hole diameter. It features a red push-to-reset button with a 1NO+1NC contact configuration, suitable for indoor environments with an IP66 and Type 13 protection rating. The switch supports panel thicknesses from 0.8mm to 12mm, with electrical ratings of 5A at 12V, 30V, and 125V AC resistive loads. Its durable construction ensures mechanical life of over 20 million operations and electrical life exceeding 0.1 million operations, complying with RoHS standards.
MULTICOMP PRO MCC2EBVE02R Emergency Stop Switch Specifications:
- Panel Thickness: 0.8mm to 12mm
- Ingress Protection: IP66, Type 4X Indoor use only & Type 13, IP30 under panel
- Mechanical Life: 20.25 million operations
- Electrical Life: >0.1 million operations
- Electrical Durability: 1,000,000 cycles AC-15 at 230V/1.6A, 1,000,000 cycles DC-13 at 24V/0.6A
- Rated Insulation Voltage: 300V
- Rated Thermal Current: 5A
- Contact Resistance: Max 100mΩ at 1A 6-8V DC
- Insulation Resistance: 100MΩ at 500V DC
- Dielectric Strength: 2000V AC for 1 min
- Operating Temperature: -25°C to +55°C
- Storage Temperature: -40°C to +85°C
- Operating Humidity: 45% to 85% RH
- Wire Diameter: 16~26 AWG, 0.2~1.5mm²
- Stripping Length: 8mm
- Torque: 1N·m
- Contact Ratings: 5A at rated voltages, various AC/DC loads
Buy the Buy Multicomp Emergency Stop Switch Part Number MCC2EBVE02R Online
Secure your machinery and enhance safety with the durable multicomp emergency stop switch MCC2EBVE02R. Featuring a 40mm red push-to-reset button, it offers IP66 protection suitable for indoor environments. With a high electrical life exceeding 0.1 million operations and a mechanical life of over 20 million operations, it ensures long-term reliability. Its rated current of 5A and voltage compatibility up to 300V make it ideal for various industrial safety needs. Easy to install, compliant with RoHS standards, and designed for panel thicknesses from 0.8 to 12mm, this switch is essential for safety panels and emergency systems.
Order your Multicomp emergency stop switch MCC2EBVE02R today and ensure safety with high durability, IP66 protection, and reliable performance for critical applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCC2EBVE02R?
You can click on the BUY or RFQ button to purchase MCC2EBVE02R from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCC2EBVE02R?
You can download the MCC2EBVE02R datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCC2EBVE02R?
MULTICOMP PRO
