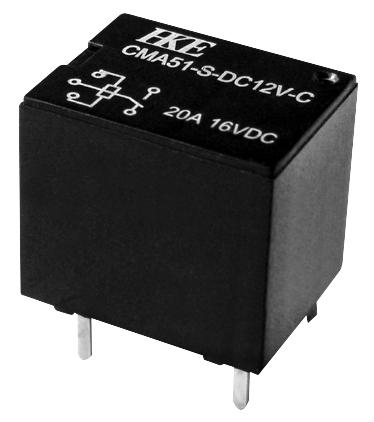

MULTICOMP PRO MCCMA51SDC12VC Automotive Relay
This automotive relay is a SPDT switch designed for reliable operation in automotive and industrial environments. It features a 12V DC coil with a coil resistance of 180 ohms, operating within a temperature range of -30°C to +85°C. The relay supports a contact rating of 20A at 14V DC resistive load, with maximum switching voltage up to 500V AC/DC and a maximum switching load of 60A. Its durable Ag Alloy contacts ensure long-term performance, making it ideal for controlling high-current circuits.
MULTICOMP PRO MCCMA51SDC12VC Automotive Relay Specifications:
- Coil Voltage: 12V DC
- Coil Resistance: 180 ohms
- Operate Voltage: 7.2V DC
- Release Voltage: 1.2V DC
- Coil Power: 800mW
- Contact Form: C-1 form C (SPDT)
- Contact Material: Silver Alloy
- Contact Rating: 20A at 14V DC resistive
- Max Switching Voltage: 500V AC/DC
- Max Carrying Current: 20A
- Max Switching Load: 60A
- Max Inrush Current: 135A
- Min Switching Load: 6V DC, 1A
- Insulation Resistance: 100 MΩ at 500V DC
- Dielectric Strength: 500V AC for 1 min between open contacts
- Operate Time: 710 ms
- Release Time: 710 ms
- Operating Temperature: -30°C to +85°C
- Shock Resistance: 100 m/s²
- Vibration Resistance: 10-55 Hz, double amplitude 1.5mm
- Weight: Approximate
- Dimensions: Not specified
Buy the Multicomp 12V DC Automotive Relay – Reliable High-Current Switch for Industrial Applications
Experience superior control with the Multicomp automotive relay, designed for high-current switching in automotive and industrial systems. This 12V DC relay features durable silver alloy contacts capable of handling 20A loads, with a maximum switching voltage of 500V. It is engineered for reliability with quick operate and release times, supporting temperatures from -30°C to +85°C. Perfect for controlling motors, lights, and other heavy-duty circuits, this relay ensures long-lasting performance in demanding environments. Buy online today for dependable circuit switching.
Buy Multicomp 12V DC automotive relay now and experience unmatched reliability and high-current switching performance ideal for automotive and industrial use.
