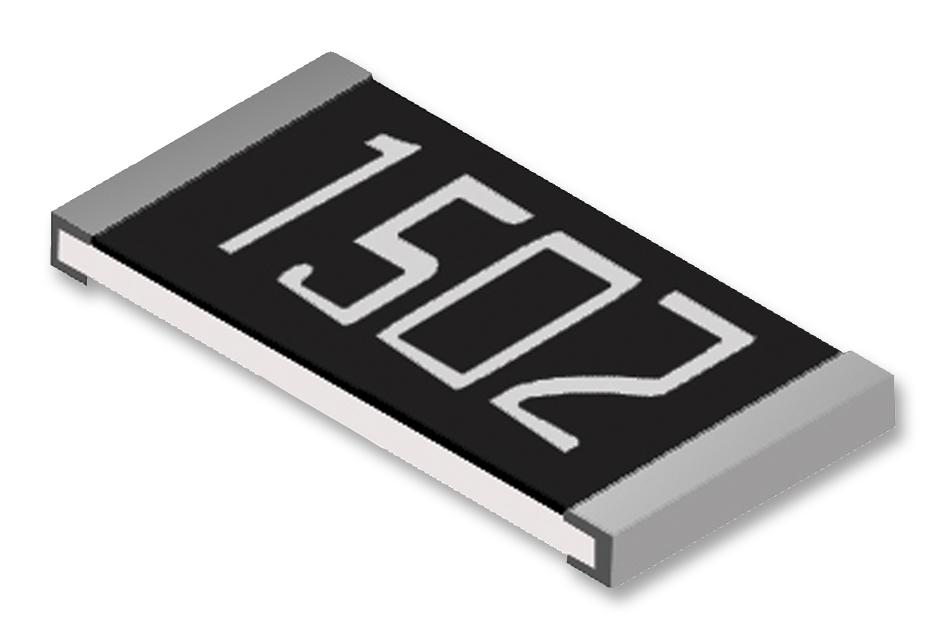

MULTICOMP PRO MCCSM12FTDTR047 Current Sensing Resistor
The MCCSM12FTDTR047 is a high-reliability, 1W current sensing resistor designed for power electronic systems like switching power supplies and voltage regulation modules. Constructed with metal foil, it offers low resistance, stable TCR, and excellent performance in overcurrent protection applications. The resistor features a compact 2512 size with precise resistance range (30-100mΩ), suitable for DC-DC converters, battery packs, and chargers. It complies with RoHS standards and is rated for ambient temperatures from -55°C to +125°C, ensuring durability in demanding environments.
MULTICOMP PRO MCCSM12FTDTR047 Current Sensing Resistor Specifications:
- Resistance Range: 30-100mΩ
- Power Rating: 1W
- Size: 2512 (6.3 x 3.15 mm)
- Temperature Coefficient of Resistance: -55°C to +125°C
- Operating Temperature: -55°C to +125°C
- Construction: Metal foil
- Compliance: RoHS
- Peak Soldering Temperature: 260°C for 10 seconds
- Endurance: 1000 hours at Max Working Voltage
- Resistance Tolerance: ±1%
Buy the Buy multicomp Current Sensing Resistor Part Number MCCSM12FTDTR047 Online
Order the multicomp MCCSM12FTDTR047 current sensing resistor online today and benefit from high reliability, low resistance, and compact design perfect for power supplies, VRMs, and battery management systems. Its metal foil construction ensures stability and durability under demanding conditions, with RoHS compliance and a maximum operating temperature of +125°C. Whether you're designing switching power supplies or overcurrent protection circuits, this 1W, 2512 size resistor offers precision and performance for your industrial, automotive, or consumer electronics needs.
Buy multicomp MCCSM12FTDTR047 now and experience unmatched reliability and performance in power electronic current sensing applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCCSM12FTDTR047?
You can click on the BUY or RFQ button to purchase MCCSM12FTDTR047 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCCSM12FTDTR047?
You can download the MCCSM12FTDTR047 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCCSM12FTDTR047?
MULTICOMP PRO
