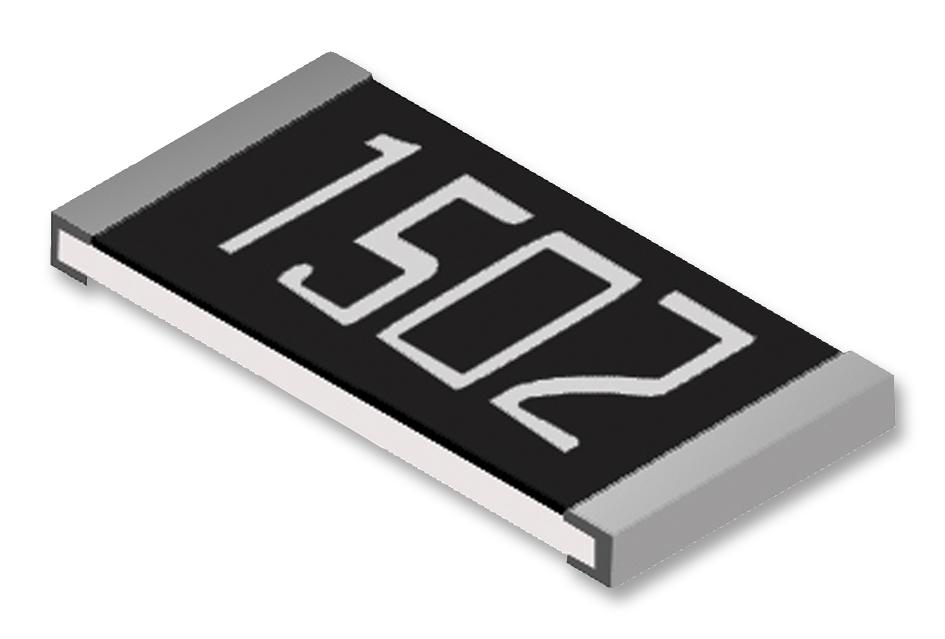

MULTICOMP-PRO MCCSM12FTDTR075 Current Sensing Resistor
The current sensing metal chip resistor series offers high reliability and low TCR stability, designed for precise current detection in power electronic systems. Manufactured with a metal foil construction, these resistors are ideal for overcurrent protection, voltage regulation modules, and switching power supplies. The series includes compact sizes MCCSMO6 and MCCSM12 with resistance ranges suitable for various applications, providing excellent thermal stability, environmental durability, and ease of surface-mount assembly. They comply with RoHS standards and are tested for endurance, overload, and solderability, making them perfect for modern power management systems.
MULTICOMP-PRO MCCSM12FTDTR075 Current Sensing Resistor Specifications:
- Size: MCCSMO6 (1206), MCCSM12 (2512)
- Resistance Range: 10-29mΩ, 30-100mΩ
- Power Rating: 0.5W (MCCSMO6), 1W (MCCSM12)
- Resistance Tolerance: ±1%
- Temperature Coefficient of Resistance: ±50 PPM/°C (MCCSM12)
- Operating Temperature Range: -55°C to +155°C
- Soldering: Reflow (max 3 cycles), wave soldering (max 2 cycles), 260°C for 10s
- Environmental Endurance: 1000 hrs at +70°C, load and heat tests
- Insulation Resistance: 210GΩ
- Overload Voltage: 2.5× rated power
- Certification: RoHS compliant
- Packaging: Reels with 4,000 to 5,000 pieces, suitable for automatic SMT placement
Buy the Multicomp MCCSM12 U– Reliable Current Sensing Resistors for Industrial Applications
Secure your power management projects with the multicomp MCCSM12 current sensing resistor, offering 1W power rating, low resistance values, and high thermal stability. Perfect for overcurrent protection, voltage regulation, and switching power supplies, this reliable component ensures precise current detection. With RoHS compliance and proven environmental durability, it is designed for easy surface-mount assembly, including features like reflow and wave soldering. Purchase online today to enhance your electronic system’s safety, reliability, and performance with this essential industrial component.
Order your multicomp MCCSM12 current sensing resistor today and ensure your power electronics projects have dependable and precise current measurement capabilities.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCCSM12FTDTR075?
You can click on the BUY or RFQ button to purchase MCCSM12FTDTR075 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCCSM12FTDTR075?
You can download the MCCSM12FTDTR075 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCCSM12FTDTR075?
MULTICOMP-PRO
