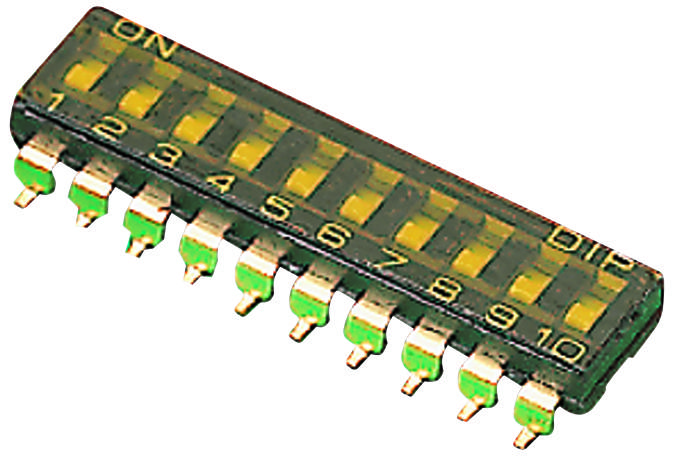

MULTICOMP PRO MCDMR02T Industrial DIP Switch
The MCDM(R)-02-T is a compact, single-pole, single-throw SPST low-profile DIP switch designed for space-saving applications in industrial environments. Featuring gold-plated contacts for high reliability, it has a recessed actuator and surface-mount design with integrated insert molding and ultrasonic welding for flux resistance. With a contact rating of 25mA at 24VDC, an insulation resistance of over 100MΩ, and dielectric strength of 500VAC, it supports vapor phase and IR reflow soldering. Its rugged construction ensures durability over 2,000 cycles, making it ideal for automation, control, and electronic equipment.
MULTICOMP PRO MCDMR02T Industrial DIP Switch Specifications:
- Contact Arrangement: SPST
- Number of Poles: 2, 4, 6, 8, 10 poles
- Contact Rating: 25mA, 24VDC
- Contact Resistance: 50mΩ Max
- Insulation Resistance: > 100MΩ at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Operating Force: 1,000gf max
- Travel: 1mm
- Operating Life: 2,000 cycles
- Operating Temperature: 20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Dimensions: varies from 6.02mm to 26.34mm length, with corresponding width from 2.54mm to 22.86mm, in inch equivalents
- Material: Nylon thermoplastic actuator, gold-plated terminals, black high-temperature resistant base
- Surface-mountable DIP, flux-proof for manufacturing efficiency
- Suitable for vapor phase and IR reflow soldering, UL and UL-approved
Buy the Multicomp Reliable SPST DIP Switch for Industrial Applications
Order the Multicomp MCDM(R)-02-T industrial DIP switch today for reliable switching in automation and control applications. Featuring gold-plated contacts, high insulation resistance, and flux-proof construction, this compact switch supports vapor phase and IR reflow soldering techniques. Designed for durability with over 2,000 operational cycles, it’s suitable for electronics requiring space-efficient, high-reliability switches. Perfect for automation systems, control panels, and electronic devices, ensuring long-lasting performance and easy installation in demanding industrial environments.
Get Multicomp MCDM(R)-02-T today—built for precision and durable performance in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDMR02T?
You can click on the BUY or RFQ button to purchase MCDMR02T from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDMR02T?
You can download the MCDMR02T datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDMR02T?
MULTICOMP PRO
