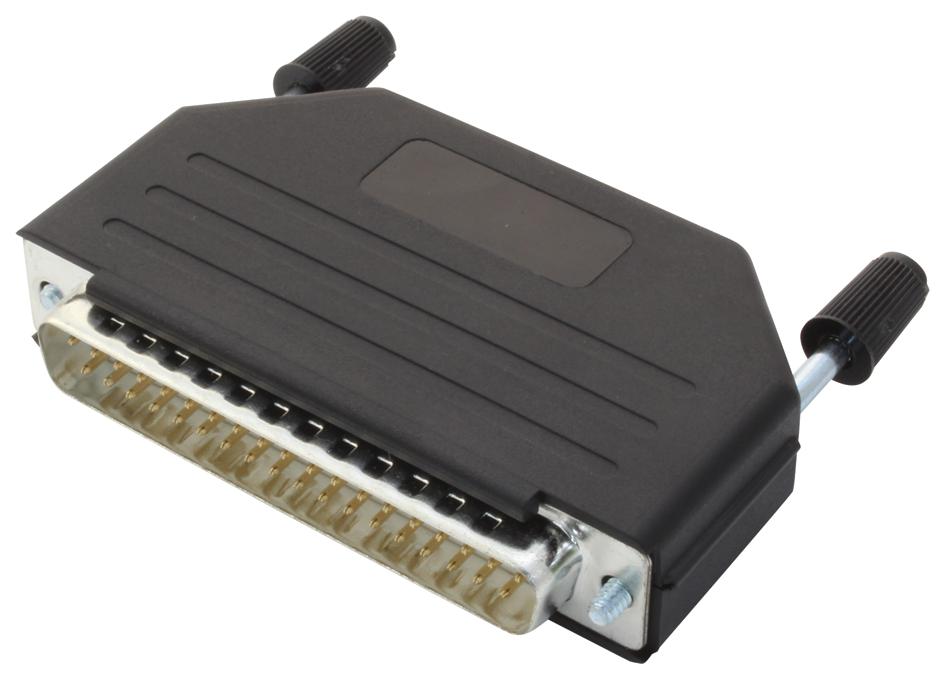

MULTICOMP-PRO MCDPPK37PSDRK D-Sub Connector Kit
The DPPK Series D-Sub Connector Kit offers a reliable solution for electronic and industrial applications, featuring solder termination and multiple contact sizes including 9, 15, 25, and 37 positions. Made with durable materials like nylon and brass with gold or tin plating, these kits support operating temperatures from -55°C to +105°C. They provide high insulation and contact resistance, supporting current ratings of 3A, suitable for various connectors such as plugs and receptacles. Compatible with cable diameters of 3mm to 11mm, these kits are RoHS compliant, ensuring environmentally friendly manufacturing.
MULTICOMP-PRO MCDPPK37PSDRK D-Sub Connector Kit Specifications:
- Gender: Plug, Receptacle
- No. of Contacts: 9, 15, 25, 37
- Shell Size: DE, DA, DB, DC
- Contact Termination: Solder
- Kit Includes: D-Sub Connector & Hood
- Hoods Material: Nylon UL94V-2
- Temperature Range: -55°C to +105°C
- Cable Diameter Range: 3mm to 11mm
- Current Rating: 3A
- Contact Resistance: 25mΩ Max.
- Insulation Resistance: 1000MΩ Max. @ 500V
- Dielectric Voltage: 1000V at 1 minute
- Insulator Material: PBT, UL94V-0
- Contacts Material: Brass, Au over Ni Plating
- Shell Material: Brass, Sn Plating
- Dimensions (mm): MC-DPPK9 - 32.4 x 31.3, MC-DPPK15 - 40.7 x 30.8, MC-DPPK25 - 54.4 x 37.3, MC-DPPK37 - 70.9 x 36
Buy the Multicomp DPPK37 U–2013 Reliable D-Sub Connector Kit for Industrial Applications
Discover the high-quality D-Sub Connector Kit from Multicomp Pro, perfect for industrial and electronic applications. Featuring solder termination and various contact sizes, these kits are made with durable materials like nylon and brass with gold or tin plating. They operate efficiently from -55°C to +105°C, support up to 3A current, and are RoHS compliant. Suitable for cable diameters of 3mm to 11mm, they ensure reliable connections and environmental compliance, making them ideal for manufacturing, maintenance, and assembly tasks. Purchase online today for trusted performance.
Get Multicomp DPPK37 Connector Kit today—designed for durable, reliable electronic connections in industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCDPPK37PSDRK?
You can click on the BUY or RFQ button to purchase MCDPPK37PSDRK from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDPPK37PSDRK?
You can download the MCDPPK37PSDRK datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCDPPK37PSDRK?
MULTICOMP-PRO
