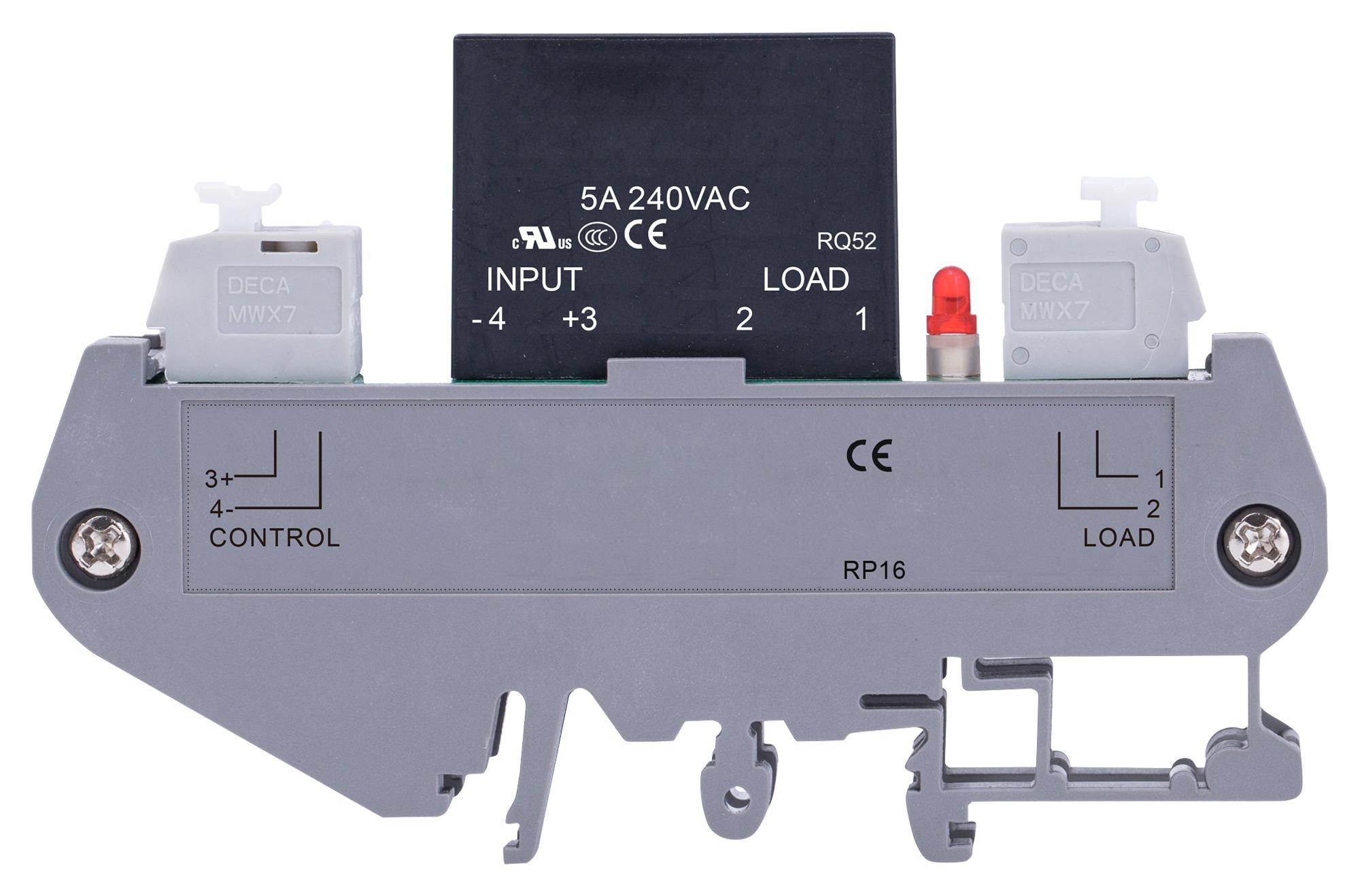

MULTICOMP PRO MCDRA1KSD380D5W037 Solid State Relay
This solid state relay module is designed for DIN rail mounting with a control voltage of 4-32V DC and a load current capacity of 0.1A to 5A. It features high EMC immunity, high inrush current capability, and isolation voltage of 4000VACrms, making it ideal for automation, control systems, and entertainment equipment. The relay provides LED indication for status, fast switching times, and robust dielectric strength. Its compact design and high inrush current support efficient control of AC loads with reliable performance in industrial environments.
MULTICOMP PRO MCDRA1KSD380D5W037 Solid State Relay Specifications:
- Control Voltage Range: 4V DC to 32V DC
- Input Specifications - Min. Turn-On Voltage: 4V DC
- Min. Turn-Off Voltage: 1V DC
- Max. Input Current: 25mA
- Load Voltage Range: 48 ~ 440V AC
- Transient Overvoltage: 800Vpk
- Load Current Range: 0.1~5A
- Max. Turn-On Time: 1/2AC Cycle + 1ms
- Zero Crossing: Yes
- Max. Turn-off Time: 1/2AC Cycle + 1ms
- Max. Surge Current (@10 ms): 60A
- Max. Off-State Leakage Current: 5mA
- Max. On-State Voltage Drop: 1.5Vrms
- Min. Off-State dv/dt: 200V/us
- Dielectric Strength Input/Output: 2000Vrms
- Ambient Operating Temperature Range: 30°C to +80°C
- Ambient Storage Temperature Range: -30°C to +100°C
- Weight (Typical): 255g
Buy the Multicomp Series Solid State Relay: MCDRA-1/KSD380D5-W(037)
Purchase the solid state relay module today to ensure reliable switching of AC loads in industrial automation, control systems, and entertainment applications. Featuring high EMC immunity, inrush current capacity, and a control voltage range of 4-32V DC, this DIN rail-mounted device is perfect for demanding environments. Its compact design, quick switching times, and robust dielectric strength enable seamless integration into your automation setup. Unlock efficient, durable, and safe control solutions by ordering online now.
Get Multicomp Series solid state relay MCDRA-1/KSD380D5-W(037) today—built for precision, high inrush current handling, and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCDRA1KSD380D5W037?
You can click on the BUY or RFQ button to purchase MCDRA1KSD380D5W037 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCDRA1KSD380D5W037?
You can download the MCDRA1KSD380D5W037 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCDRA1KSD380D5W037?
MULTICOMP PRO
