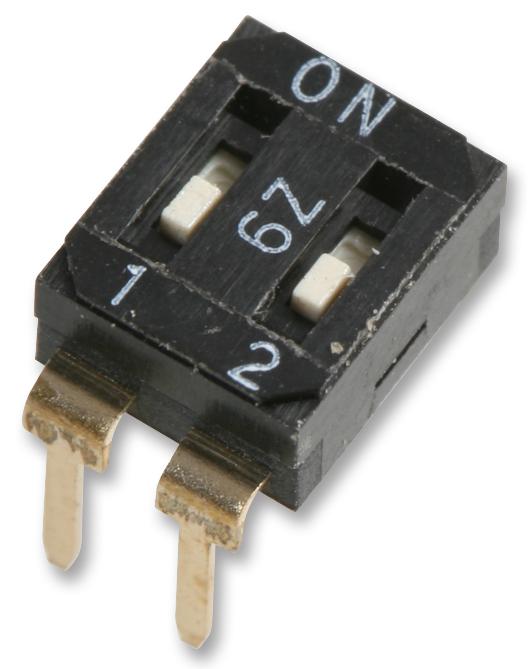

MULTICOMP PRO MCEIR02 End Stackable DIP Switch
The MCEIR-02 is a single-pole, single-throw SPST end stackable DIP switch with through-hole terminals and a recessed actuator. Made with gold-plated contacts and a high-temperature thermoplastic base, it offers reliable electrical performance, including a contact resistance of 100 milliohms at 500V DC and an insulation resistance of 100 megaohms. Rated for 500VAC dielectric strength for one minute, it is suitable for industrial automation and electronic control applications. Its compact, stackable design ensures versatile integration in various equipment requiring precise switch functionality.
MULTICOMP PRO MCEIR02 End Stackable DIP Switch Specifications:
- Mechanical Life: 2,000 operations
- Max. Operating Force: 1,000gf
- Stroke: 1mm
- Operating Temperature Range: -20°C to +85°C
- Storage Temperature Range: -40°C to +85°C
- Electrical Life: 2,000 cycles
- Rating: 25mA, 24V DC
- Min. Contact Resistance: 100mΩ at 500V DC
- Max. Insulation Resistance: 100MΩ at 500V DC
- Dielectric Strength: 500V AC/1 minute
- Contact Arrangement: 1 pole throw
- Base and Cover Material: UL 94V-0 Nylon high-temperature thermoplastic
- Colour (Base and Cover): Black
- Actuator Material: UL 94V-0 LCP high-temperature thermoplastic
- Actuator Colour: White
- Contact Material: Alloy copper with gold plating
- Terminal Material: Brass with gold plating
- Tape: Kapton
- Dimensions (mm/inches): 12 (0.472), 4.98 (0.196) per position, wire length 2.54 (0.1)
Buy the Multicomp Reliable End Stackable Switch for Industrial Applications
Enhance your electronic assembly with the reliable end stackable DIP switch designed for industrial automation. Featuring gold-plated contacts, high-temperature thermoplastic body, and a compact, stackable design, this switch ensures dependable performance for control panels and automation systems. Its high dielectric strength and insulation resistance make it suitable for demanding environments. Simplify your assembly process by purchasing this versatile switch online today and ensure long-lasting, efficient operation of your electronic projects.
Buy Multicomp MCEIR-02 now and experience unmatched reliability and performance in your control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCEIR02?
You can click on the BUY or RFQ button to purchase MCEIR02 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCEIR02?
You can download the MCEIR02 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCEIR02?
MULTICOMP PRO
