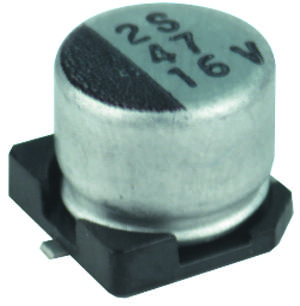

MULTICOMP-PRO MCESL10V227M63X77 Aluminium Electrolytic Capacitor
Multicomp Pro surface-mount aluminium electrolytic capacitor features high-density design, suitable for modern PCBs, with a 2,000-hour life at 85°C. Specifically tailored for reliable power filtering and smoothing in compact electronic assemblies, it offers capacitance options from 0.1 to 1500uF and working voltages up to 100V. Designed with low leakage current, excellent temperature stability, and resistance to thermal stress, this capacitor ensures durability in demanding environments. Its precise dimensions and ripple current capabilities make it ideal for compact, high-performance electronic devices.
MULTICOMP-PRO MCESL10V227M63X77 Aluminium Electrolytic Capacitor Specifications:
- Operating Temperature Range: -40°C to +85°C
- Working Voltage Range: 4 to 100V
- Capacitance Range: 0.1 to 1500uF
- Capacitance Tolerance: +20% (120 Hz, 20°C)
- Maximum Leakage Current: |< 0.01 CV or 3 (UA)| after 2 mins
- Dimensions: 7.7 x 10.5 mm (Case H for 220uF, 63V typical), various sizes based on capacitance and voltage
- Ripple Current at 120Hz, 105°C: up to 450 mA (for higher capacitance variants)
- Impedance Ratio Z-25°C / Z+20°C: 2 to 7 depending on capacitance and voltage
- Shelf Life: 1,000 hrs at 85°C with minimal capacitance change
- Soldering Resistance: Capacitance change within 10%, leakage current within specified limits
Buy the Multicomp Series Electrolytic Capacitor: MCESL10V227M63X77
Purchase the Multicomp aluminium electrolytic capacitor MCESL10V227M63X77 online today for high-quality power filtering solutions. Designed for surface mounting, it guarantees long-lasting operation with a 2,000-hour life at 85°C. Suitable for demanding environments, it features a capacitance of 220uF at 63V, low leakage current, and excellent thermal stability. Ideal for compact electronics, power supplies, and smoothing applications, ensuring reliable performance and easy integration. Buy now for fast delivery and superior performance in your electronic projects.
Get Multicomp aluminium electrolytic capacitor MCESL10V227M63X77 today—optimized for durability, stability, and reliable performance in high-density electronic assemblies.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCESL10V227M63X77?
You can click on the BUY or RFQ button to purchase MCESL10V227M63X77 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCESL10V227M63X77?
You can download the MCESL10V227M63X77 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCESL10V227M63X77?
MULTICOMP-PRO
