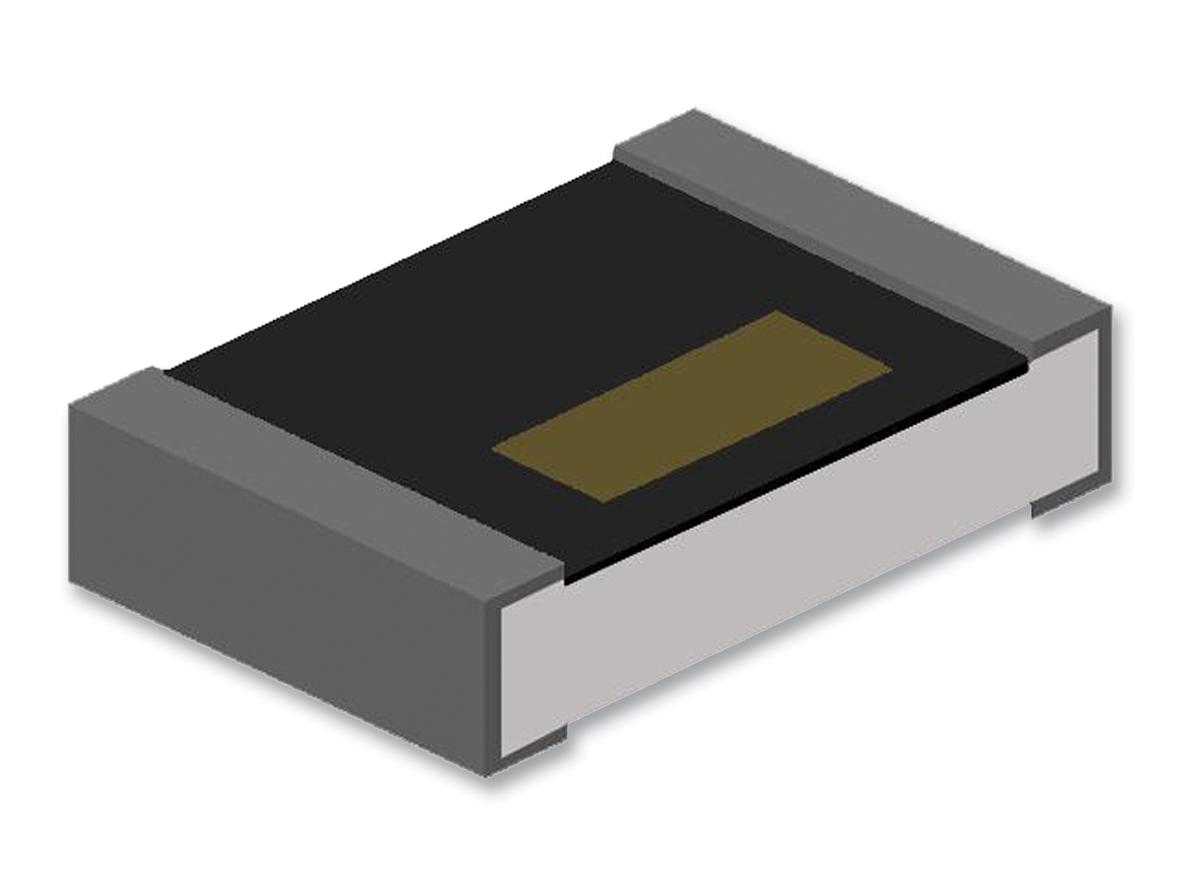

MULTICOMP-PRO MCFT0BT0N3 Thin Film Chip Inductor
The AL Series Thin Film Chip Inductor is a high-performance, RoHS-compliant component designed for RF and high-frequency applications such as cellular telephones, GPS devices, wireless LAN, Bluetooth modules, and RF transceiver circuits. It features a photolithographic single-layer ceramic structure with high SRF, excellent Q, and superior temperature stability. The inductors offer tight tolerance of ±1% or 0.1nH, with stable inductance at high frequencies and controlled self-resonant frequency within 10%. Its construction utilizes alumina substrate, inner and external electrodes, and a barrier layer for durability and reliability in critical electronic circuits.
MULTICOMP-PRO MCFT0BT0N3 Thin Film Chip Inductor Specifications:
- Construction: Alumina substrate, inner Ni-Cr electrode, Cu circuits, barrier layer (Ni), external Sn electrode
- Dimensions: 0201 size - 0.6 ± 0.05 mm x 0.3 ± 0.05 mm x 0.23 ± 0.05 mm; 0402 size - 1 ± 0.05 mm x 0.5 ± 0.05 mm x 0.32 ± 0.05 mm
- Inductance Range: 0.1nH to 27.0nH with ±1% or ±0.1nH tolerance
- SRF: Min 10 GHz at rated current for 0.2nH to 4.3nH values, decreasing for higher inductance
- Max Current: 90mA to 500mA depending on inductance
- Peak Reflow Temperature: 265°C
- Environmental Resistance: Insulation resistance > 1,000 MΩ, withstand damp heat, bending strength, and soldering heat tests
- Packaging: Reel packaging with quantities up to 10,000 pieces for 0201 size
- Standards: MIL-STD-202F, JIS-C 5201-1
- Storage Conditions: 25°C, humidity <80% RH, up to 1,000 hours
Buy the Buy AVNET Thin Film Chip Inductor Part Number MCFT0BT0N3 Online
Order the AVNET Thin Film Chip Inductor MCFT0BT0N3 online today for reliable high-frequency performance in RF, GPS, Bluetooth, and wireless communication modules. Designed with a ceramic structure for excellent temperature stability and high SRF, this RoHS-compliant inductor ensures tight tolerance of ±1%, stable inductance at high frequencies, and durability under harsh environmental conditions. Perfect for critical RF transceiver circuits, cellular phones, and GPS devices, it provides consistent performance and ease of installation with reel packaging options up to 10,000 units for efficient manufacturing.
Get AVNET MCFT0BT0N3 today—built for precision and long-lasting durability in high-frequency RF circuits.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCFT0BT0N3?
You can click on the BUY or RFQ button to purchase MCFT0BT0N3 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT0BT0N3?
You can download the MCFT0BT0N3 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCFT0BT0N3?
MULTICOMP-PRO
