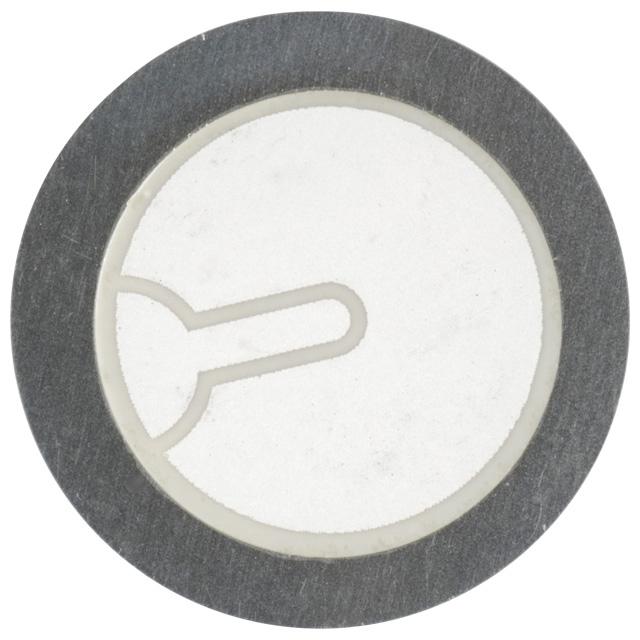

MULTICOMP-PRO MCFT27T40B1130 Ultrasonic Piezo Diaphragm
This piezo element features a diaphragm with a resonant frequency of 24.5 kHz and a capacitance of 20000pF. Designed for high-frequency applications, it operates within a temperature range of -20°C to +60°C and can withstand voltages up to 30 Vp-p. Its compact size and RoHS compliance make it suitable for various industrial and electronic applications such as sensors, transducers, and ultrasonic devices. The component has a resonant resistance of 5000 ohms and a low capacitance variation at 1kHz, ensuring reliable performance in demanding environments.
MULTICOMP-PRO MCFT27T40B1130 Ultrasonic Piezo Diaphragm Specifications:
- Resonant Frequency: 24.5 kHz ±0.5 kHz
- Resonant Resistance: 5000 ohms max.
- Capacitance: 20000pF ±30% at 1kHz
- Input Voltage: 30 Vp-p max.
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -20°C to +70°C
- Dimensions: Diameter approximately 0.43 inches (11mm), thickness 0.05 inches (1.3mm)
- RoHS Compliant
- Part Number: MCFT-27T-4.0B1-130
Buy the Multicomp Piezo Element – Reliable Ultrasonic Diaphragm for Industrial Applications
Purchase the Multicomp Piezo Element online today and enhance your ultrasonic devices with a high-performance, reliable component. Featuring a 24.5 kHz resonant frequency, 20000pF capacitance, and operating within -20°C to +60°C, this piezo diaphragm is ideal for sensors and transducers. Its compact size and RoHS compliance ensure safety, durability, and easy integration into various industrial applications. Order now to benefit from fast shipping and trusted quality, ensuring your projects are completed efficiently with top-tier parts.
Get Multicomp Piezo Element today—designed for high-frequency ultrasonic sensing with durable construction and RoHS compliance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCFT27T40B1130?
You can click on the BUY or RFQ button to purchase MCFT27T40B1130 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCFT27T40B1130?
You can download the MCFT27T40B1130 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCFT27T40B1130?
MULTICOMP-PRO
