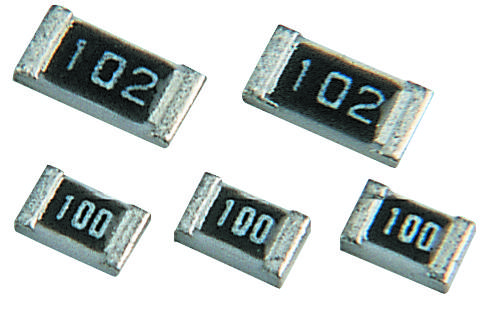

MULTICOMP PRO MCHP05W4F6800T5E Surface Mount Resistor
The Multicomp Pro HP05 series surface mount resistors are high-power thick film components in the EIA 0805 chip size. They feature resistance values from 1 ohm to 10 megaohms, with ±1% or ±5% tolerance options. Rated at 250mW power and maximum voltage of 150V, these resistors offer a temperature coefficient of ±200ppm/°C for low resistance values and ±100ppm/°C for higher. Suitable for wave and reflow soldering, providing reliable performance for industrial and electronic applications, and ensuring durability and stability under varying operating conditions.
MULTICOMP PRO MCHP05W4F6800T5E Surface Mount Resistor Specifications:
- Power Rating: 250mW at 70°C ambient temperature
- Maximum Working Voltage: 150V
- Resistance Range: 1Ω to 10MΩ
- Tolerance: ±1% or ±5%
- Temperature Coefficient: ±200ppm/°C for 1-10Ω, ±100ppm/°C for higher resistance values
- Construction: High Purity Alumina Substrate, protective covering, resistive covering, inner Ag/Pd termination, Ni plated intertermination, outer Sn plating
- Dimensions: Length approximately 1.25 mm, width 0.6 mm, height 0.4 mm
- Suitable for wave and reflow soldering processes
- Marking: First two significant digits are resistance value, third digit indicates number of zeros
- Performance characteristics include resistance change limits during overload, temperature cycling, humidity, and solderability tests
- Construction materials ensure durability and stability in industrial applications.
Buy the Multicomp U5– Reliable Surface Mount Resistors for Industrial Applications
Order the Multicomp Pro high-power surface mount resistors online today and benefit from reliable performance, precise resistance values, and versatile soldering options. Perfect for industrial, automation, and electronic manufacturing environments, these resistors ensure stable operation under varying conditions. With their compact size and robust construction, they provide excellent resistance stability and longevity. Purchase now to upgrade your electronic assemblies with trusted components that guarantee durability, high performance, and excellent electrical characteristics for your industrial applications.
Buy Multicomp HP05 series resistors now and experience unmatched durability and precision for your electronic and industrial projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCHP05W4F6800T5E?
You can click on the BUY or RFQ button to purchase MCHP05W4F6800T5E from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHP05W4F6800T5E?
You can download the MCHP05W4F6800T5E datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCHP05W4F6800T5E?
MULTICOMP PRO
