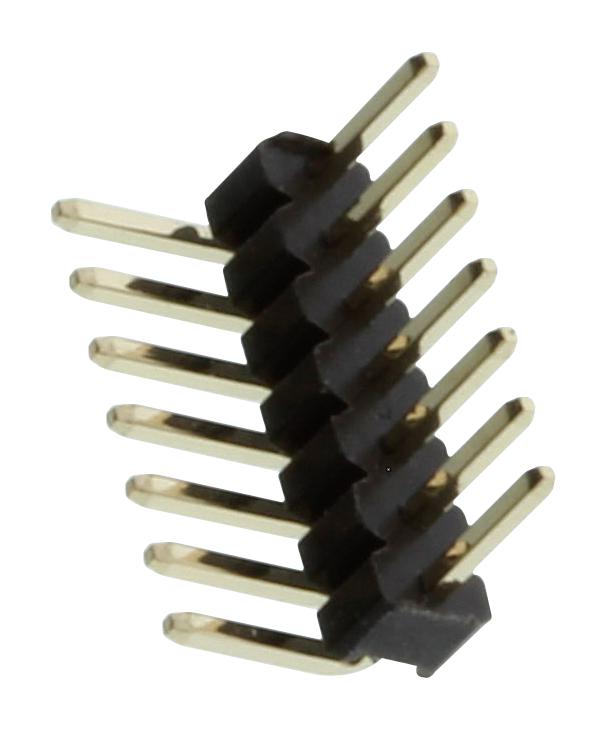

MULTICOMP-PRO MCHRT1S07G Pin Header
The 1.27mm Pin Header is a single row, right-angle, through-hole component suitable for PCB connections. Made from high-temperature nylon 6T UL94V-0 plastic, with copper alloy contacts plated with gold for excellent conductivity and corrosion resistance. Designed for reliable electrical and mechanical performance, it can handle nominal current and voltage ratings, with insulation resistance of 1000MΩ min and contact resistance of 20mΩ max. Suitable for various electronic applications, it ensures durability withstanding voltage of 500V and operating temperature range from -25°C to +105°C. Compatible with 1 to 10 positions, providing flexible configurations for different circuit needs.
MULTICOMP-PRO MCHRT1S07G Pin Header Specifications:
- Current Rating: A specific value not provided
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: -25°C to +105°C
- Materials and Finish: Copper Alloy with Gold Plated contacts, High-temp Nylon 6T UL94V-0 insulator
- Color: Black
- Plated: Gold
- Dimensions: 1.27mm pitch, 1 to 10 positions, with length approx. 1.27 x (number of positions) + 0.38 mm
- Certifications: RoHS Compliant
Buy the Multicomp Series 1.27mm Pin Header: MCHRT1S07G
Order the Multicomp 1.27mm Pin Header online now to enjoy high-quality PCB connections with gold-plated contacts, a durable nylon insulator, and versatile configurations from 1 to 10 positions. This right-angle through-hole connector ensures reliable electrical performance and withstands operating temperatures from -25°C to +105°C. Compatible with various electronic assemblies, it features excellent insulation resistance and contact durability, making it ideal for your circuit and prototyping needs. Purchase today for swift delivery, superior performance, and peace of mind.
Get Multicomp Series 1.27mm Pin Header MCHRT1S07G today—built for reliable PCB connections and endurance in electronics projects.
