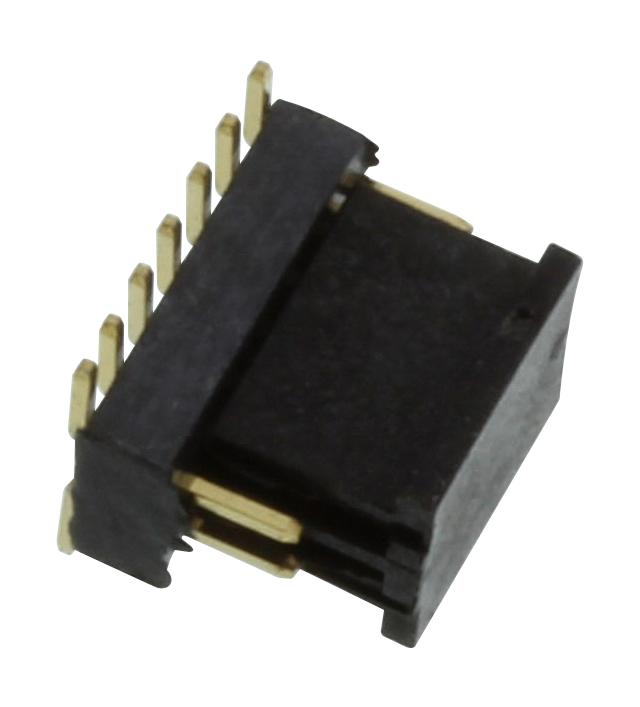

MULTICOMP-PRO MCHVS1D14G Pin Header with Cap
The Imm Pin Header with Cap is a versatile double-row, vertical SMD connector designed for high-reliability electrical connections in electronic assemblies. It features a 1mm pitch, gold-plated copper alloy contacts, and high-temperature plastic insulators rated UL94V-0. Capable of handling 1A current and 50V voltage, it withstands voltage of 500V for one minute, with insulation resistance of 1000MQ minimum. Operating temperature ranges from -25°C to +105°C, making it suitable for various industrial and electronic applications requiring secure, rugged connections.
MULTICOMP-PRO MCHVS1D14G Pin Header with Cap Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MQ Min
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: -25°C to +105°C
- Insulator Material: High temp. plastic (LCP UL94V-0)
- Contact Material: Copper alloy, gold plated
- Color: Black
- Number of Positions: 6, 8, 10, 12, 14, 20, 30, 40
- Pitch: 1mm
- Height: 3.7mm
- Design: Double-row, vertical, SMD type
- Dimensions: Millimeter specifications vary per model
Buy the Multicomp Series Pin Header with Cap: MC-HVS1-D14-G
Purchase the Multicomp series Pin Header with Cap MC-HVS1-D14-G now to ensure robust and secure connections in your electronic projects. These vertical, SMD-compatible headers feature gold-plated contacts for excellent conductivity and corrosion resistance. Constructed with high-temperature UL94V-0 rated plastic, they withstand operating temperatures up to 105°C. Designed with a 1mm pitch and double-row configuration, they support 1A current and 50V voltage. Ideal for industrial, automation, and consumer electronics requiring reliable, easy-to-mount connector solutions for your assembly process.
Get Multicomp series pin header with cap MC-HVS1-D14-G today—designed for durable, high-reliability electronic connections with easy SMD mounting.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCHVS1D14G?
You can click on the BUY or RFQ button to purchase MCHVS1D14G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHVS1D14G?
You can download the MCHVS1D14G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCHVS1D14G?
MULTICOMP-PRO
