MULTICOMP-PRO MCHVS1S06G Pin Header
This high-quality 1.27mm pin header with cap offers a reliable vertical, SMD design suitable for compact electronic assemblies. It features a 5.1mm height and various positive positions, such as 6POS, with gold-plated copper alloy contacts for excellent conductivity and corrosion resistance. The high-temp nylon insulator ensures durability, operating safely within -25°C to +105°C. Rated for 1A current at 50V, it provides stable connections with low contact resistance of 20mΩ. Suitable for compact PCB designs requiring secure and durable terminal connections.
MULTICOMP-PRO MCHVS1S06G Pin Header Specifications:
- Current Rating: 1A AC/DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max
- Insulation Resistance: 1000MΩ Min
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: -25°C to +105°C
- Material: High temp. Nylon (UL94V-0)
- Color: Black
- Contact Material: Copper Alloy
- Plating: Gold Plated
- Height: 5.1mm
- Pitch: 1.27mm
- Number of Positions: 6 (example), varies for other models
- Type: Vertical, SMD
- RoHS Compliant

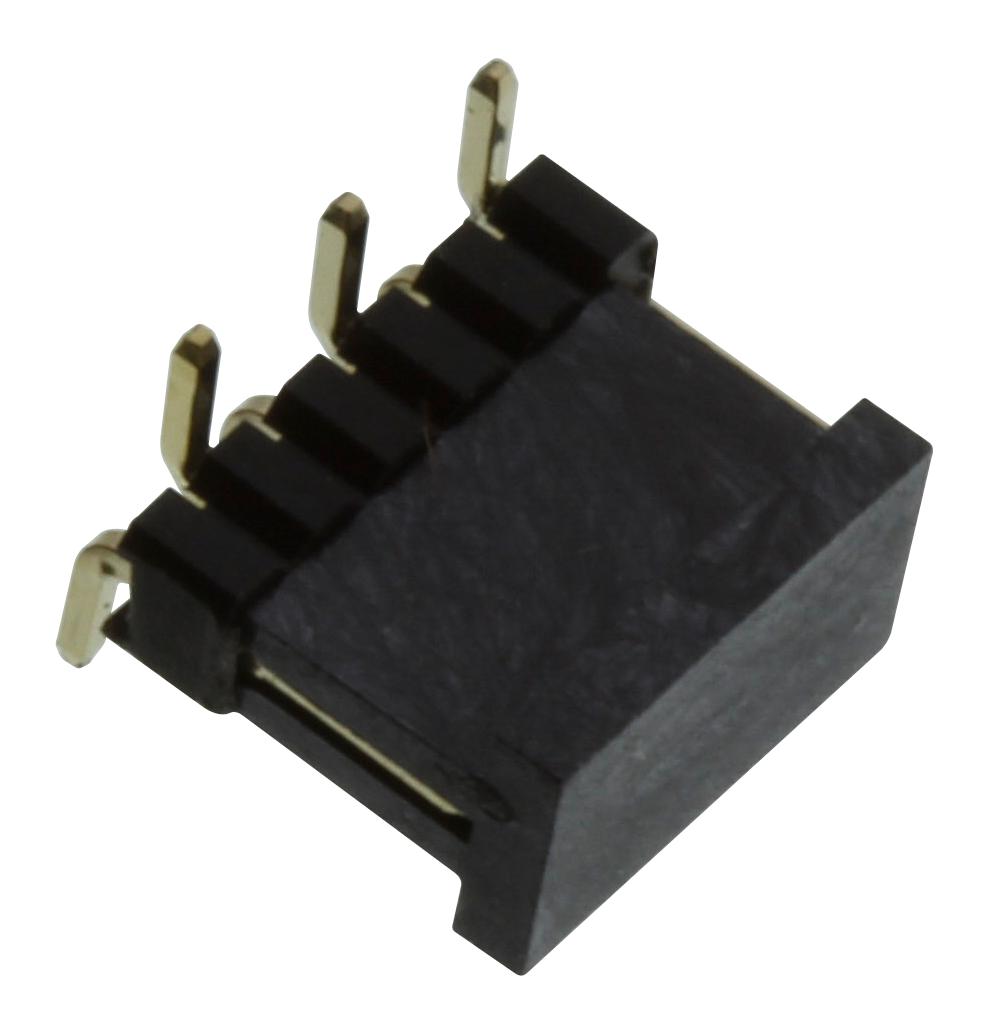

Buy the Buy Multicomp Pin Header with Cap Part Number MCHVS1S06G Online
Purchase the Multicomp Pin Header with Cap MCHVS1S06G today online to benefit from high-performance, durable connections suitable for compact electronic assemblies. Designed for reliable SMD mounting with a 1.27mm pitch and 6 positions, this header features gold-plated copper contacts for optimal conductivity. The high-temp nylon insulator withstands temperatures from -25°C to +105°C, making it perfect for demanding environments. Easy to integrate into your PCB with its sturdy construction, deliver your projects precise, secure connections by ordering now.
Order your Multicomp Series MCHVS1S06G pin header with cap today and ensure reliable, high-quality connections for your electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCHVS1S06G?
You can click on the BUY or RFQ button to purchase MCHVS1S06G from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHVS1S06G?
You can download the MCHVS1S06G datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCHVS1S06G?
MULTICOMP-PRO
