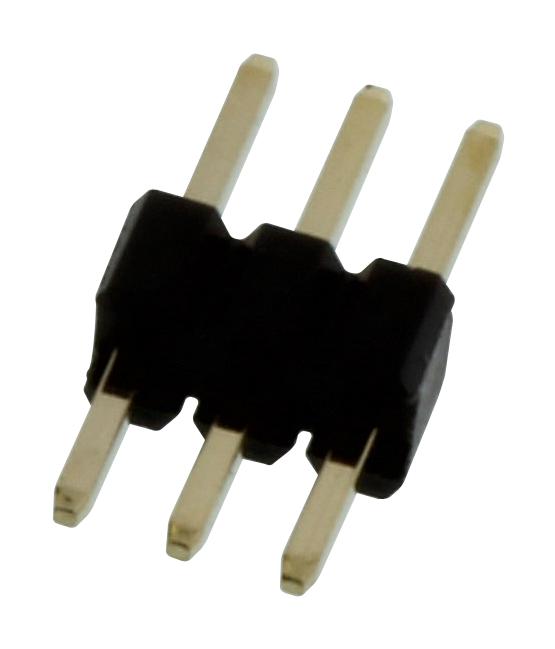

MULTICOMP PRO MCHVT1S03G Pin Header
This 1.27mm pin header is a single row, vertical through-hole type connector designed for precise electronic connections in various devices. Constructed with durable high-temperature nylon (UL94V-0), it features a copper alloy contact plated with gold for optimal conductivity and corrosion resistance. Rated for 1A DC current and 50V AC/DC, it withstands voltages up to 500V for one minute, operating effectively from 25°C to 105°C. Compact and RoHS compliant, it is suitable for high-density PCB applications requiring reliable and safe electrical contacts.
MULTICOMP PRO MCHVT1S03G Pin Header Specifications:
- Current Rating: 1A DC
- Voltage Rating: 50V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V for one minute
- Operating Temperature Range: 25°C to +105°C
- Material: High-temp nylon (UL94V-0), Copper Alloy contact
- Plating: Gold-plated
- Color: Black
- Dimensions: 1.27mm pitch, contact length approximately 1.2mm, insulator height suitable for PCB mounting
- RoHS Compliant
Buy the Buy Multicomp 1.27mm Pin Header Part Number MCHVT1S03G Online
Discover the reliable 1.27mm pin header, featuring gold-plated copper contacts and high-temperature plastic for long-lasting durability. Perfect for electronics assembly, this vertical through-hole connector offers a secure and stable connection with a current capacity of 1A and voltage rating up to 50V. Its compact design fits neatly on PCBs, making it ideal for high-density circuit boards. RoHS compliant, it withstands voltages up to 500V for one minute and operates within a temperature range from 25°C to 105°C, ensuring safety and performance in demanding applications.
Get Multicomp 1.27mm pin header today—designed for precision, durability, and reliable PCB connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCHVT1S03G?
You can click on the BUY or RFQ button to purchase MCHVT1S03G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCHVT1S03G?
You can download the MCHVT1S03G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCHVT1S03G?
MULTICOMP PRO
