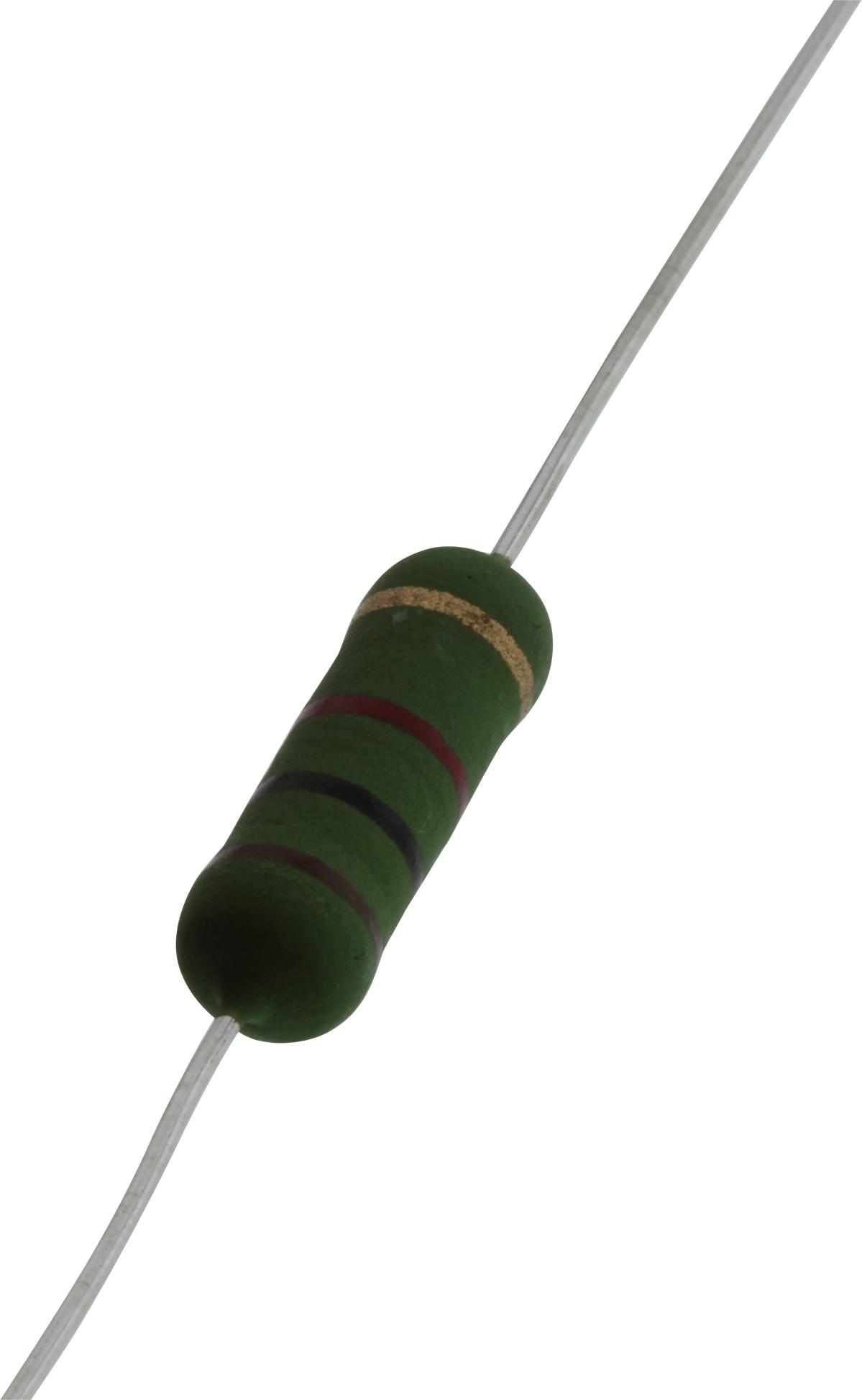

MULTICOMP-PRO MCKNP02WJ0102A19 Wire-Wound Resistor
The wire-wound fixed resistor offers high reliability, excellent flame resistance, and various power ratings from 1W to 100W. It features non-inductive construction and a green coating, suitable for industrial applications requiring stable resistance under thermal cycling, overload, and humid conditions. These resistors come in standard E-24 and E-96 series tolerances with optional sizes and packing types. Designed to withstand high voltage and temperature variations, they are ideal for power supplies, automation, and control systems needing precision and durability.
MULTICOMP-PRO MCKNP02WJ0102A19 Wire-Wound Resistor Specifications:
- Power Ratings: 1W, 2W, 3W, 5W, 7W, 9W, 10W, 20W, 30W, 40W, 50W, 60W, 80W, 100W
- Resistance Range: 0.19Ω to 50KΩ (depending on model)
- Tolerance: ±2%, ±5%, ±10%, ±1% (E-24, E-96 series)
- Temperature Coefficient: <200PPM/°C for <200Ω, >200PPM/°C for >200Ω
- Operating Voltage: Max 500V, Overload Voltage: 1,000V
- Dimension: Varies by power rating, typically around 28-50mm length, 10-53mm diameter
- Construction: Green coating, non-inductive type available, flame resistant
- Terminals: Metal lead terminals with high mechanical strength
- Dielectric Withstanding Voltage: 350V (less than 1W), 500V (above 1W)
- Environmental Resistance: High resistance to humidity, soldering heat, and thermal cycling
Buy the Royalohm 02W – Reliable Resistance for Industrial Applications
Order the Royalohm 02W wire-wound resistor now to ensure your industrial applications perform reliably and efficiently. Designed for high thermal stability, flame resistance, and durability, this resistor is suitable for power supplies, automation systems, and control devices. With a range of power ratings up to 100W, excellent overload and thermal cycling resistance, and optional sizes, it guarantees long-lasting performance in demanding environments. Purchase online and enhance your project's reliability and build quality today.
Buy Royalohm 02W wire-wound resistor now and experience unmatched reliability and performance in your power and control systems.
