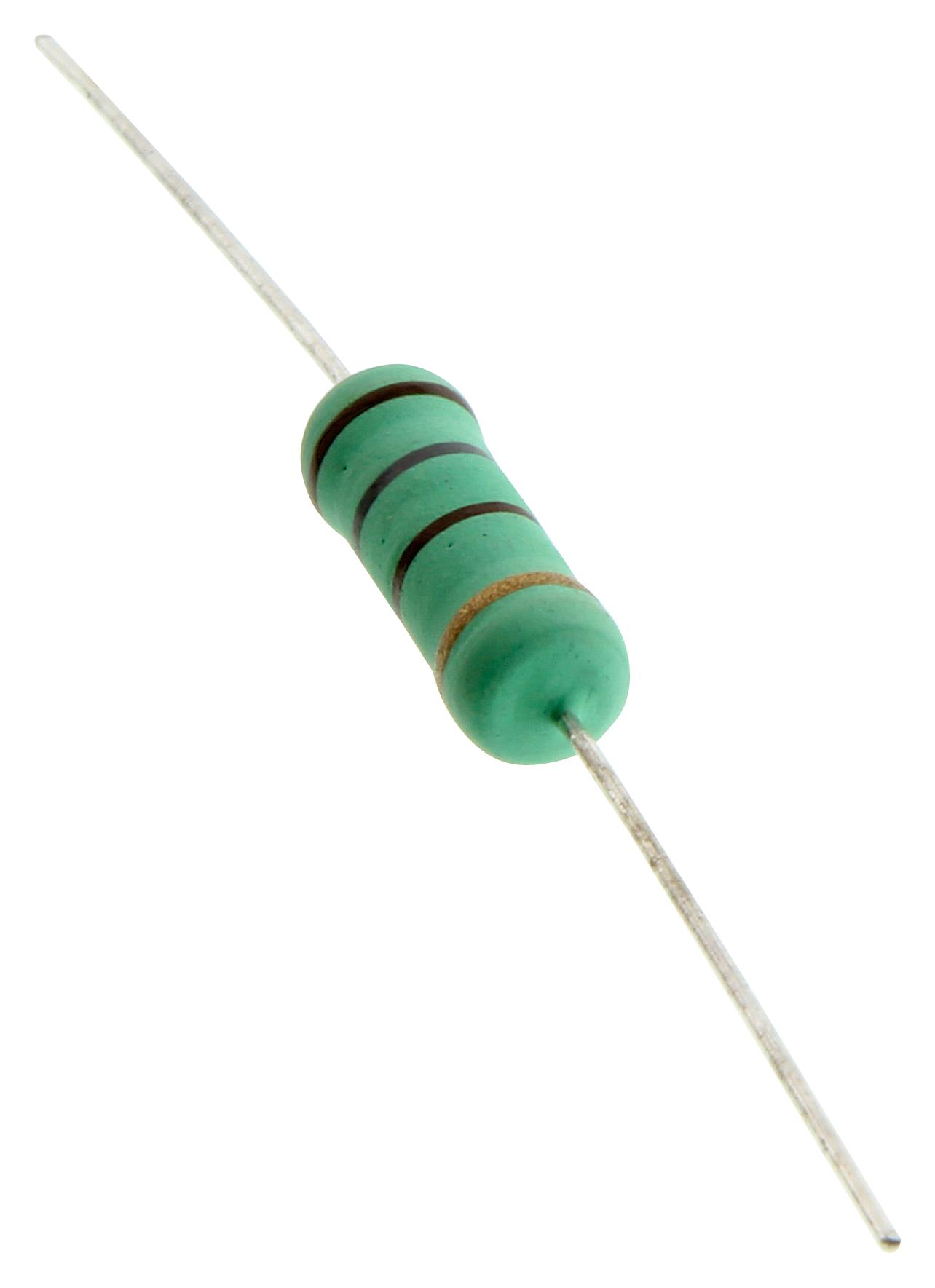

MULTICOMP PRO MCKNP05SJ0181AA9 Wire Wound Resistor
These wire wound fixed resistors feature green color coating and are available in various power ratings from 0.5W to 7W, with resistance values spanning from 0.1Ω to 200kΩ. They are designed for high stability, flame resistance, and non-inductive performance. Suitable for precision applications, they feature copper-nickel or nickel-chromium alloy resistive elements, steel end caps, and annealed copper leads. Their robust construction ensures resistance to soldering heat, temperature cycling, and humidity, making them ideal for demanding industrial and electronic applications.
MULTICOMP PRO MCKNP05SJ0181AA9 Wire Wound Resistor Specifications:
- Wattage: 0.5W to 7W depending on model
- Resistance Range: 0.1Ω to 200kΩ
- Material: Cu-Ni Alloy / Ni-Cr Alloy
- Body: Ceramics with green insulated coating
- End Cap: Steel (Tin plated iron surface)
- Lead Wire: Annealed Copper Wire with Tin coating
- Dimensions: D1: 3.5 mm to 19 mm, L#1: 10 mm to 64 mm, d0.05: 0.10 mm to 0.75 mm, H43: 28 mm to 100 mm
- Features: Flame resistant, non-inductive, high temperature stability
- Resistance Tolerance: 2%, 5%, 10%, with specific series for high precision
- Performance: Temperature coefficient below 400 PPM/°C, overload resistance, dielectric withstanding voltage, flame and humidity resistance
- Design: Green color coating, suitable for precision and industrial applications
Buy the Multicomp Series Resistors: Wire Wound Fixed Resistors 0.5W-7W: MCKNP05SJ0181AA9
Order the Multicomp wire wound fixed resistor now to ensure high stability, flame resistance, and durability for your industrial and electronic projects. These resistors are engineered for precision, with resistance values ranging from 0.1Ω to 200kΩ, suitable for demanding environments. Crafted with ceramic bodies, copper-nickel or nickel-chromium alloys, steel end caps, and tin-coated copper leads, they provide excellent performance during soldering, temperature cycling, and humidity conditions. Perfect for high-reliability applications requiring consistent, accurate resistance under stressful conditions.
Buy Multicomp wire wound fixed resistors with green coating and high reliability now and experience unmatched stability and durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCKNP05SJ0181AA9?
You can click on the BUY or RFQ button to purchase MCKNP05SJ0181AA9 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKNP05SJ0181AA9?
You can download the MCKNP05SJ0181AA9 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCKNP05SJ0181AA9?
MULTICOMP PRO
