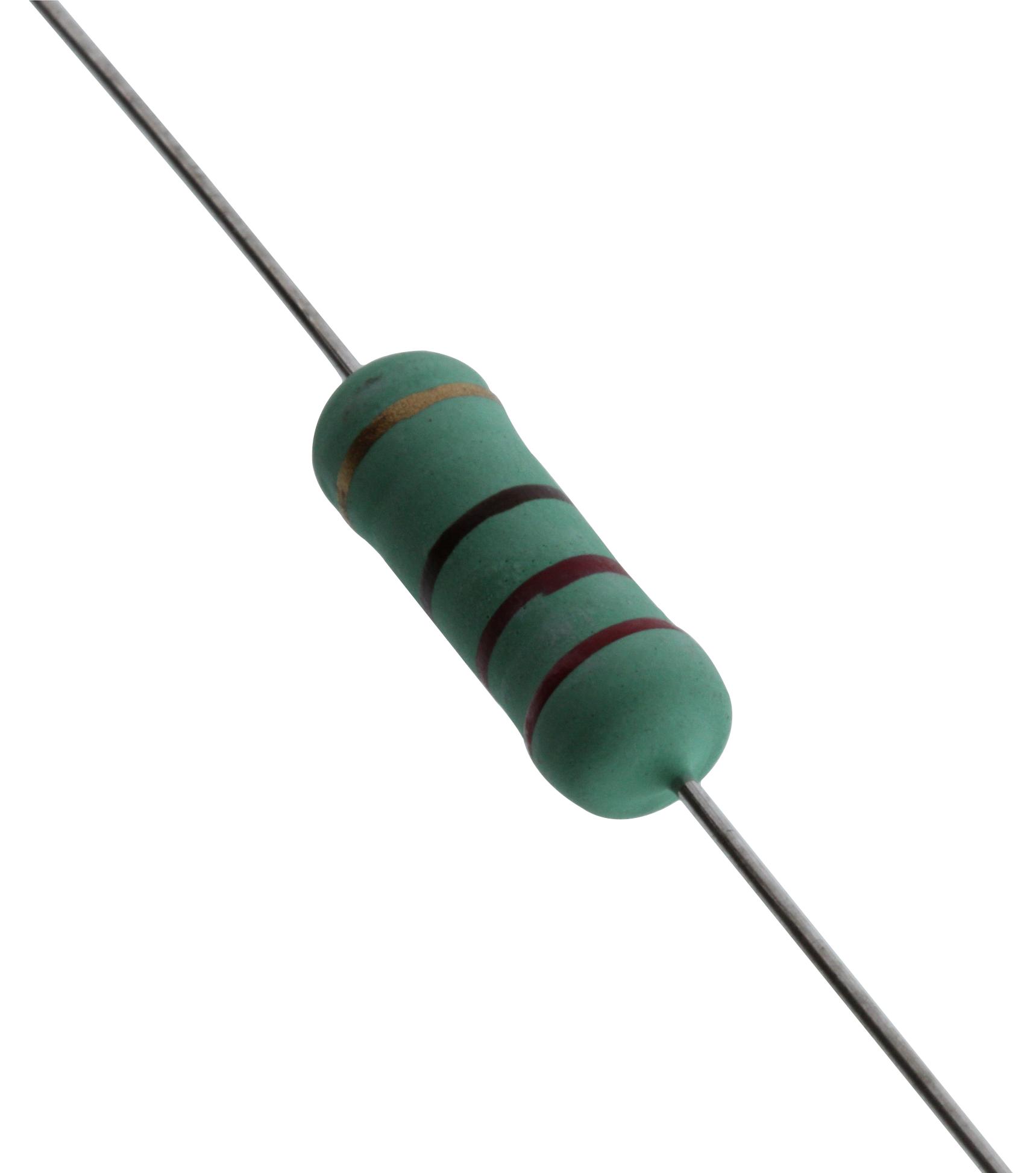

MULTICOMP PRO MCKNP05SJ0221AA9 Wire-Wound Fixed Resistor
Royalohm wire-wound fixed resistors offer high reliability and precise performance with low temperature coefficients. Suitable for industrial applications, these resistors feature excellent flame resistance, non-inductive types, and variable power ratings from 1/2W to 100W. They are tested for dielectric withstand voltage, overload capacity, and load life in humidity, ensuring durability under demanding conditions. Supplied in various sizes, packing types, and resistance values, these resistors provide stable resistance and high-performance in control circuits and power supplies. Custom values available upon request for low or high ohmic requirements, ensuring flexibility for diverse industrial needs.
MULTICOMP PRO MCKNP05SJ0221AA9 Wire-Wound Fixed Resistor Specifications:
- Power Ratings: 1/2W, 1W, 2W, 3W, 5W, 7W, 8W, 9W, 10W, 20W, 30W, 40W, 50W, 60W, 80W, 100W
- Resistance Range: 0.4Ω to 50KΩ, depending on model
- Operating Voltage: Max. 500V, Overload Voltage: Max. 1000V
- Temperature Coefficient: <200: +400PPM/°C; >200: +300PPM/°C
- Maximum Working Temperature: +155°C, Flame Resistance: Excellent
- Dielectric Withstanding Voltage: 350V (up to 1W-S), 500V (>1W-S)
- Physical Dimensions: Small to standard sizes, diameter varies by power rating, typical length around 28-55mm
- Solderability: Min. 95% coverage, Resistance to Soldering Heat: Max. +1.0% + 0.05Ω
- Pulse and overload ratings exceed limits with no damage, Terminal strength robust, Load life stability within ±6.0%
Buy the Multicomp-Pro Series Resistor MCKNP05SJ0221AA9
Discover the durability and precision of Royalohm wire-wound fixed resistors available online. With high reliability, flame resistance, and customizable power ratings, these resistors are ideal for control circuits, power supplies, and industrial automation. Easy to integrate, they meet strict standards for overload capacity, load life, and electrical stability, making them a perfect choice for demanding applications. Purchase now to ensure your equipment performs reliably in challenging environments with long-lasting resistor solutions from Royalohm.
Get Royalohm KNP series resistors today—built for precision and long-lasting durability under demanding industrial conditions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCKNP05SJ0221AA9?
You can click on the BUY or RFQ button to purchase MCKNP05SJ0221AA9 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCKNP05SJ0221AA9?
You can download the MCKNP05SJ0221AA9 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCKNP05SJ0221AA9?
MULTICOMP PRO
