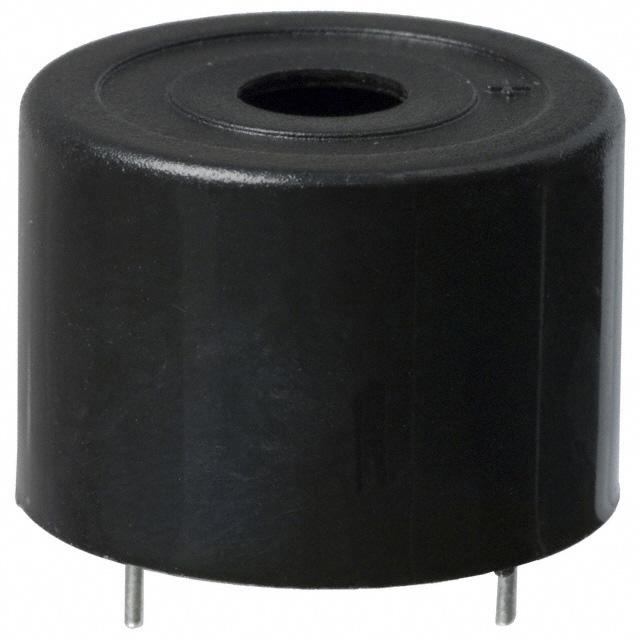

MULTICOMP-PRO MCKPMG1240AK4048 Magnetic Buzzer and Transducer
The MCKPM-G1240A-K4048 is a reliable magnetic buzzer and transducer designed for sensing and instrumentation applications, housed in a durable PBT case with water seal. It operates within a voltage range of 2V to 5V, producing a minimum sound pressure level of 94dB at 10cm and resonant frequency of 4,000Hz. The device features a coil resistance of 214 ohms and a max inductance of 2.5mH, with dimensions optimized for through-hole mounting. Suitable for various industrial environments with operating temperatures from -20°C to 70°C, making it ideal for automation and electronic systems requiring alert or signal functions.
MULTICOMP-PRO MCKPMG1240AK4048 Magnetic Buzzer and Transducer Specifications:
- Rated Voltage: 3V
- Operating Voltage: 2V to 5V
- Max. Rated Current: 50mA
- Coil Resistance: 214 ohms +20
- Coil Impedance: 400 ohms
- Min. Sound Pressure Level: 94dB at 10cm
- Resonant Frequency: 4000Hz
- Shell Material / Colour: PBT / Black
- Operating Temperature: -20°C to 70°C
- Storage Temperature: 30°C to 80°C
- Weight: 2g
- Max. Inductance: 2.5mH
- Min. Resistance: 20 ohms
- Wire Diameter: 0.07 mm
Buy the Multicomp Magnetic Buzzer and Transducer – Reliable Sensing for Industrial Applications
Enhance your sensing and alert systems with the reliable Magnetic Buzzer and Transducer. Perfect for industrial applications, it features a durable PBT housing, operates efficiently within a voltage range of 2V to 5V, and provides a powerful 94dB sound level at 10cm. Its compact design and water seal ensure durability in challenging environments. Easy through-hole mounting makes installation quick. Suitable for automation, instrumentation, and control systems, this buzzer guarantees consistent performance, backed by quality assurance and a 12-month warranty. Order online now for fast delivery!
Order your Multicomp Series MCKPM-G1240A-K4048 today and ensure dependable signal output for your sensing and instrumentation projects.
