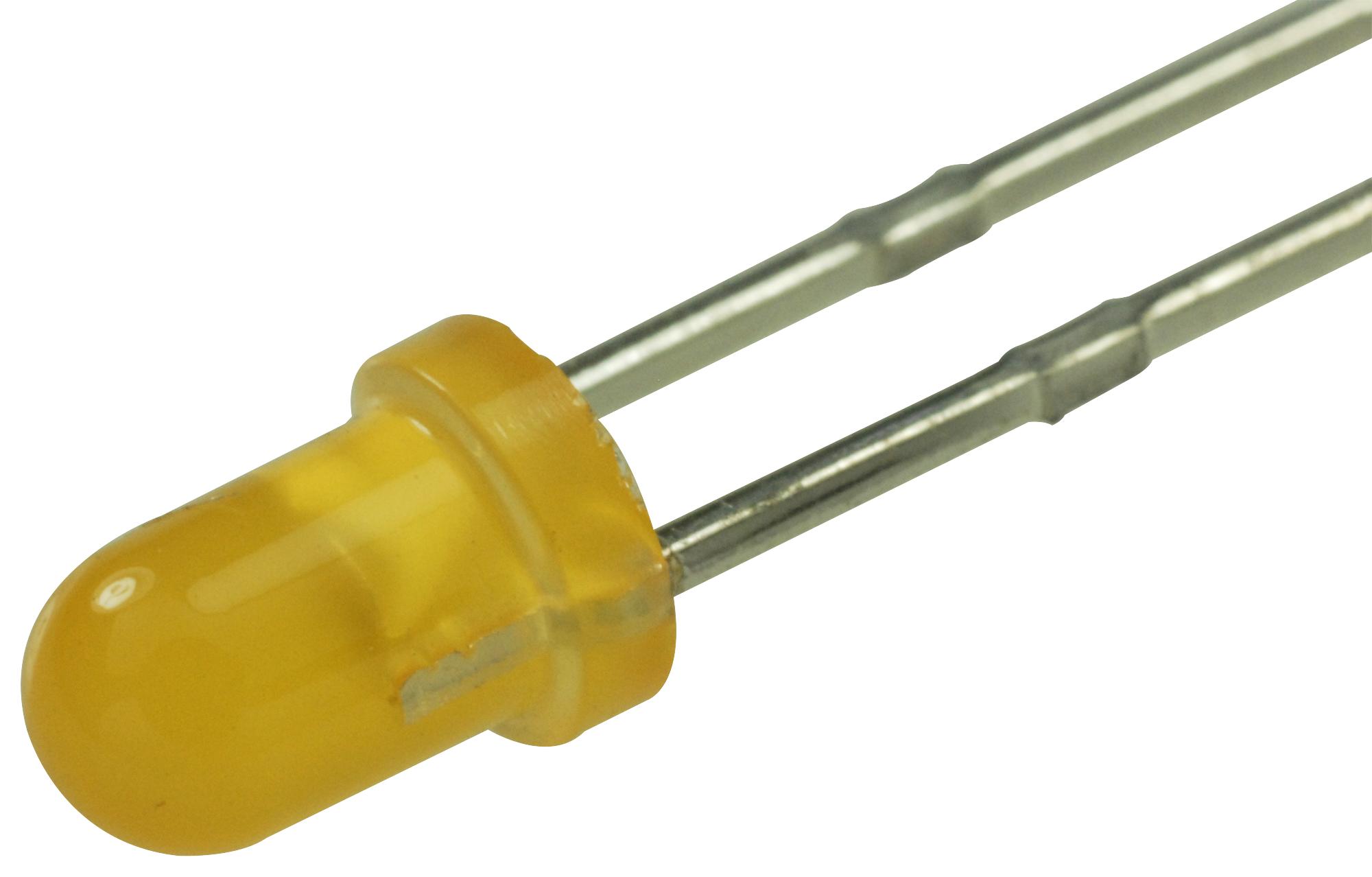

MULTICOMP PRO MCL034BD amber diffused LED indicator
The MCL034BD is a high-quality 3mm amber diffused LED designed for industrial and electronic applications. Built with GaAsP on GaP dice, it features a peak wavelength of 610nm, a viewing angle of 176°, and a luminous intensity range from 4 to 13 med at 20mA. This LED can operate at temperatures from -40°C to 85°C and withstands reverse voltages up to 5V with a reverse current of 10 microamperes. Its durable construction ensures reliable performance in demanding environments, making it ideal for indicator lights, displays, and signaling devices.
MULTICOMP PRO MCL034BD amber diffused LED indicator Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Amber
- Lens Colour: Amber Diffused
- Peak Wavelength: 610nm
- Viewing Angle: 176°
- Luminous Intensity: 4 to 13 med at 20mA
- Reverse Voltage: 5V
- Reverse Current: 10μA at 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds at 4.6mm from body
Buy the Multicomp Series LED Indicator: MCL034BD
Order the Multicomp Series MCL034BD amber diffused LED online today for reliable operation in industrial environments. Featuring a 610nm wavelength and a 176° viewing angle, this 3mm LED is perfect for signaling and display applications. It operates from -40°C to 85°C, with a reverse voltage of 5V and reverse current of 10μA, ensuring durability and performance in demanding settings. Easy to install and suitable for various electronic projects, this LED provides long-lasting, bright illumination with consistent luminescence.
Get Multicomp Series MCL034BD LED today—built for precision and long-lasting durability in industrial applications.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL034BD?
You can click on the BUY or RFQ button to purchase MCL034BD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034BD?
You can download the MCL034BD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL034BD?
MULTICOMP PRO
