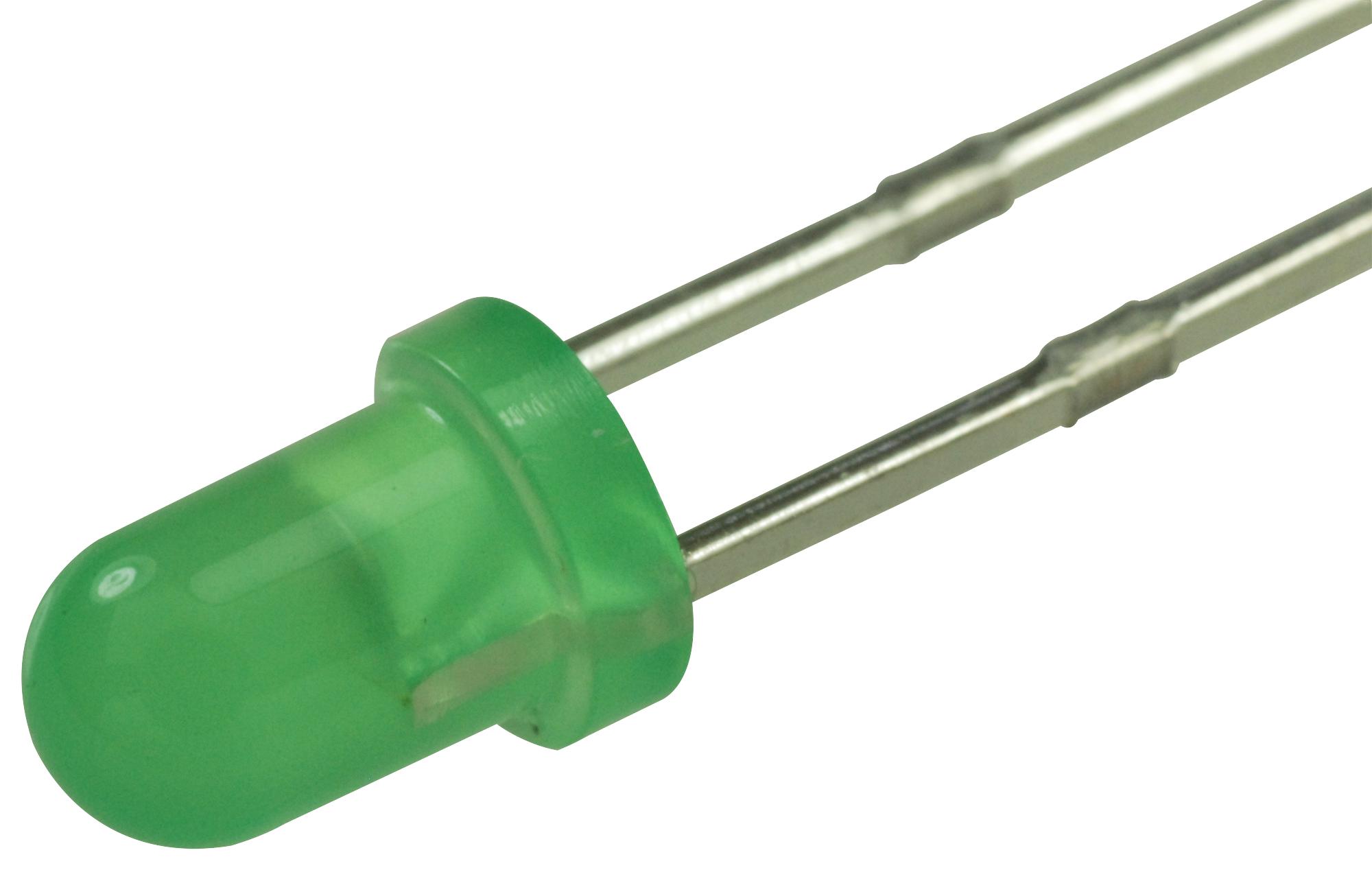

MULTICOMP-PRO MCL034GD Green 3mm LED
The MCL034GD is a high-brightness green LED with a 3mm through-hole design, made with GaP die and a diffused lens. Emitting at approximately 568/570 nm, it offers a wide 76° viewing angle and withstands lead soldering up to 260°C for 5 seconds. Operating effectively from -40°C to 100°C, it is suitable for LED lighting and indicator applications. Built with robust specifications, this LED delivers reliable illumination, making it ideal for various industrial and electronic projects. Its durable construction ensures consistent performance in diverse environments.
MULTICOMP-PRO MCL034GD Green 3mm LED Specifications:
- Dice Material: GaP
- Emitted Colour: Green
- Lens Colour: Green Diffused
- Peak Wavelength: 568nm
- Viewing Angle: 76°
- Luminous Intensity: 6 med
- Reverse Voltage: 5V
- Reverse Current: 10μA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
- Forward Voltage: 1.7V at 20mA
- Peak Forward Current: 100mA (duty 1/10 at 1kHz)
- Recommended Operating Current: 20mA
Buy the MultiComp Series LED: Green 3mm High Brightness: MCL034GD
Order the MultiComp Series green LED MCL034GD online today for your electronic and industrial projects. Designed with GaP die and a diffused lens, this high-brightness LED offers a peak wavelength of approximately 568/570 nm and a wide 76° viewing angle. It operates within a temperature range of -40°C to 100°C and withstands lead soldering at 260°C for 5 seconds. Ideal for indicators and lighting, it provides reliable performance, durability, and easy integration into various electronic assemblies. Shop now for quick delivery and quality assurance.
Get MultiComp Series MCL034GD green LED today—built for high brightness and long-lasting durability in electronic projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL034GD?
You can click on the BUY or RFQ button to purchase MCL034GD from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034GD?
You can download the MCL034GD datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL034GD?
MULTICOMP-PRO
