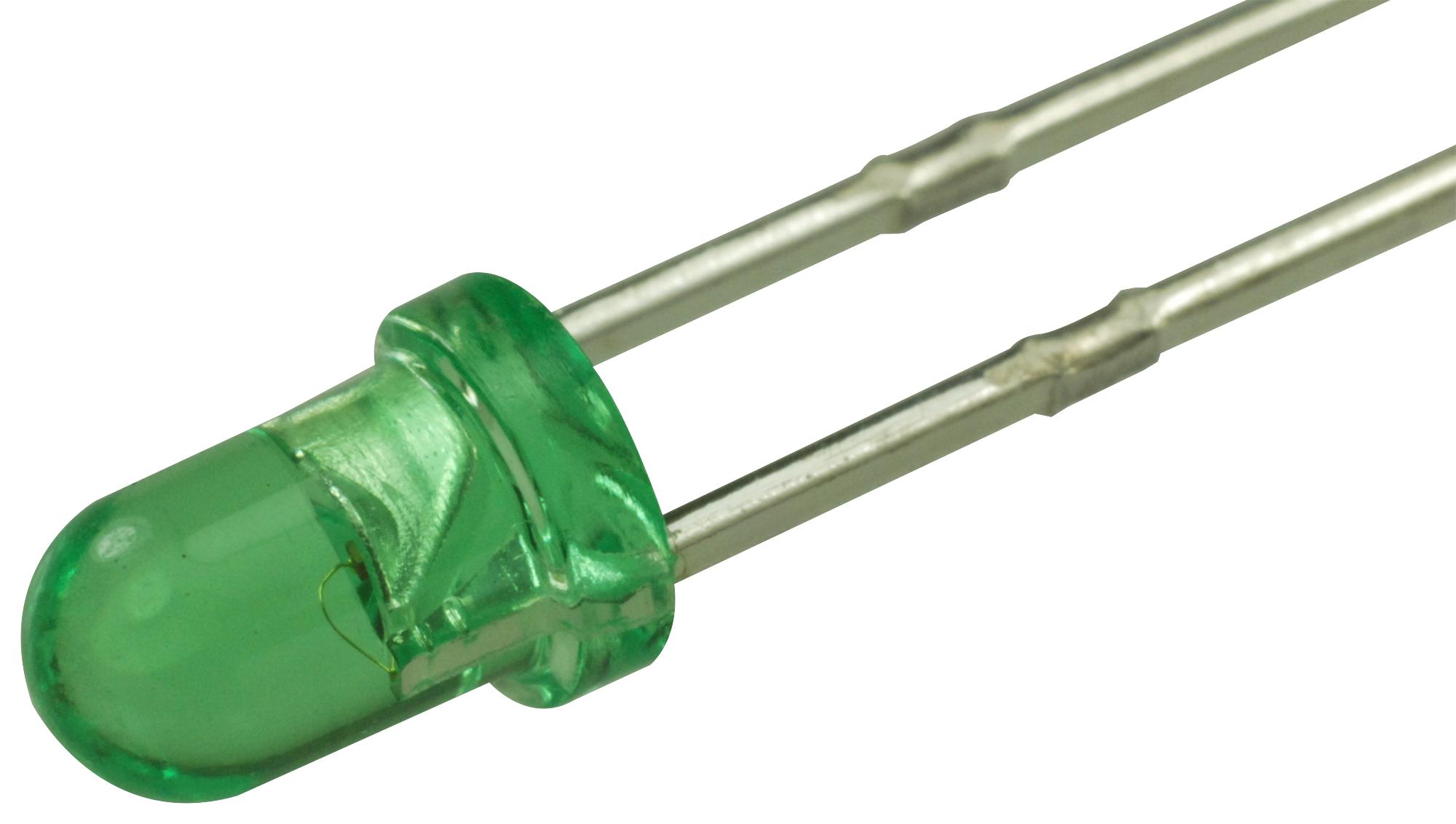

MULTICOMP-PRO MCL034GT Green 3mm LED
The MCL034GT is a 3mm green LED lamp with a transparent lens, round shape, and through-hole mounting design. Made with Gallium Phosphide (GaP), it features a luminous intensity of 26mcd, peak wavelength of 568nm, and 36° viewing angle. Operating efficiently within -40°C to +85°C and supporting a power dissipation of 85mW, it is ideal for LED lighting applications in various industrial setups. Suitable for electronics projects, signaling, and indicator lights, this LED offers reliable performance and compatibility with standard circuit systems, making it a versatile choice for engineers.
MULTICOMP-PRO MCL034GT Green 3mm LED Specifications:
- Dice Material: GaP
- Emitted Colour: Green
- Lens Colour: Transparent
- Peak Wavelength: 568nm
- Viewing Angle: 36°
- Luminous Intensity: 26mcd
- Reverse Voltage: 5V
- Reverse Current: 10uA (Ve=5V)
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 Seconds at 2.4mm from body
- Forward Voltage: 1.7V at 20mA
- Power Dissipation: 85mW
- Peak Forward Current: 100mA at 1/10 duty cycle, 1kHz
- Recommended Operating Current: 20mA
Buy the Multicomp 034GT – Reliable Green LED for Industrial Applications
Purchase the Multicomp 034GT green LED online today and enhance your electronic projects with a high-quality, reliable lighting component. Featuring a clear lens, 568nm peak wavelength, and 36° viewing angle, this LED offers excellent brightness of 26mcd and a durable GaP construction. Operating at temperatures from -40°C to +85°C, it supports 85mW power dissipation for efficient performance. Ideal for indicator lights, signaling, and industrial lighting, it ensures consistent operation in diverse environments. Order now for quick delivery and excellent value!
Buy Multicomp 034GT now and experience unmatched reliability and performance in your LED lighting and signaling projects.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL034GT?
You can click on the BUY or RFQ button to purchase MCL034GT from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL034GT?
You can download the MCL034GT datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL034GT?
MULTICOMP-PRO
