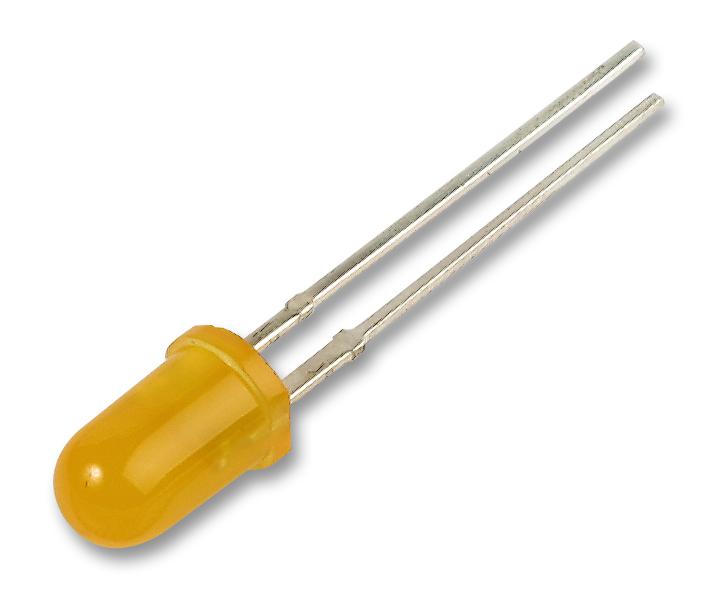

MULTICOMP PRO MCL053AT Orange LED
The MCL053AT is a 5mm orange through-hole LED made from GaAsP on GaP die. It features an orange transparent round lens and is designed to withstand soldering temperatures of up to 260°C for 5 seconds, with a lead distance of 1.6mm from the body. The operating temperature range is from -40°C to 85°C. Suitable for LED lighting applications, this product has received positive reviews and is supported by a 12-month limited warranty. Due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation.
MULTICOMP PRO MCL053AT Orange LED Specifications:
- Dice material: GaAsP on GaP
- Emitted colour: Orange
- Lens colour: Transparent
- Peak wavelength: 635nm
- Viewing angle: 16°
- Luminous intensity: 50mcd
- Reverse Voltage: 5V
- Reverse Current: 10uA at Ve = 5V
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Lead Soldering Temperature Range: 260°C for 6 seconds at 4.6mm from body
- Forward Voltage: 1.6V to 2.6V at IF = 20mA
- Peak Forward Current: 100mA (duty 1/10 at 1kHz)
- Recommended Operating Current: 20mA
Buy the Multicomp Series LED: Orange 5mm GaAsP on GaP - MCL053AT
Purchase the Multicomp 5mm orange LED MCL053AT online today and benefit from high luminous efficiency, excellent durability, and a wide operating temperature range. Perfect for various illumination tasks, this LED offers a long-lasting, reliable light source suitable for electronic and lighting applications. With a compact 5mm size, transparent lens, and robust construction, it ensures easy integration into your designs. Order now to enjoy fast shipping, competitive pricing, and trusted quality for your projects or repairs.
Buy Multicomp orange 5mm LED MCL053AT now and experience reliable illumination with high efficiency and durable performance for your lighting projects.
