MULTICOMP-PRO MCL053PD Red LED

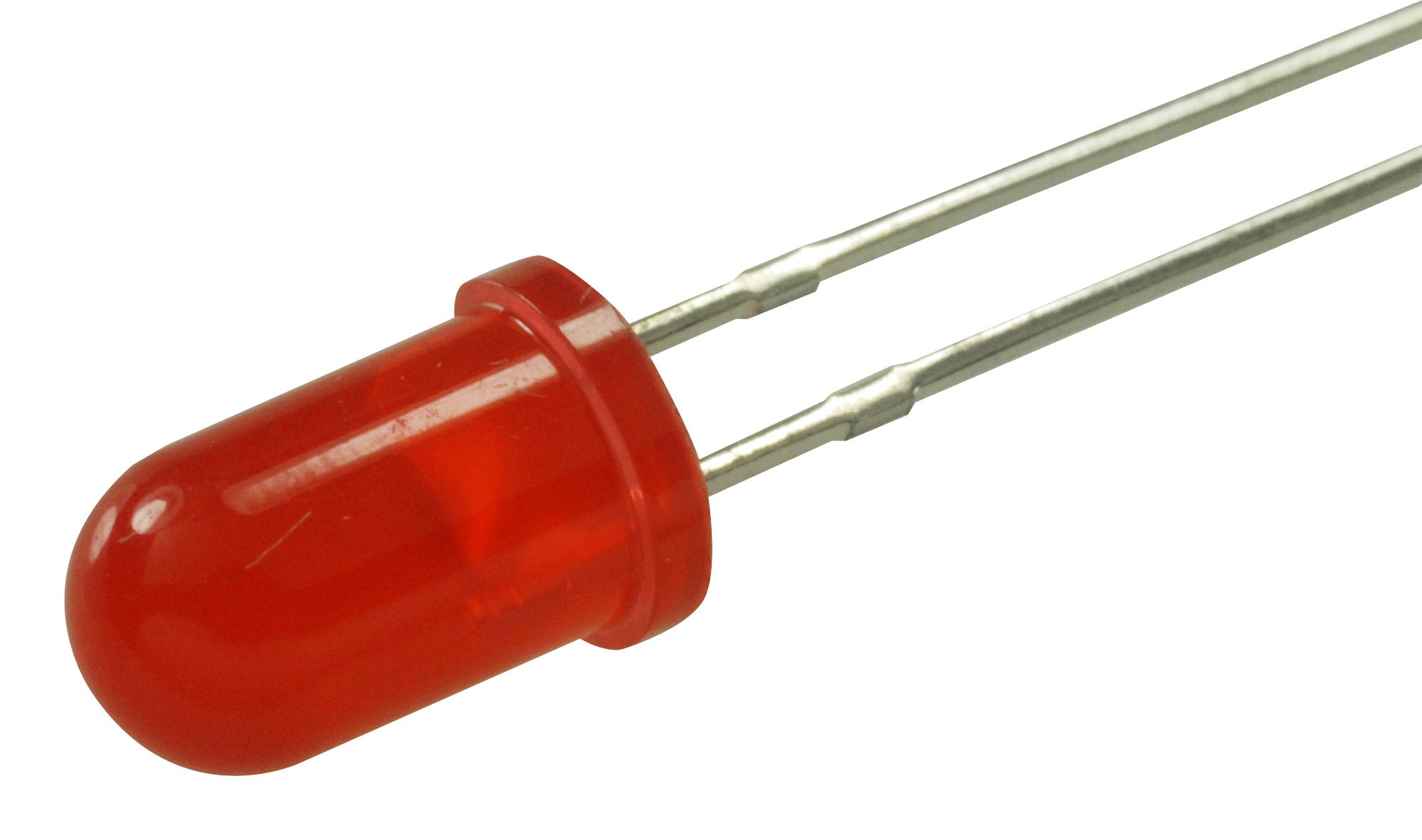

The MCL053PD is a high-intensity 5mm round LED designed for reliable illumination in industrial and electronic applications. Featuring a red diffused lens and made with Gallium Phosphide (GaP), it emits a peak wavelength of 650nm with a luminous intensity of 2.8 millicandelas. The LED supports a viewing angle of 45°, and operates efficiently within a temperature range of -40°C to +85°C. Its power dissipation is 45mW, and it is suitable for through-hole mounting, making it a versatile and durable lighting component for various automation and electronic projects.
MULTICOMP-PRO MCL053PD Red LED Specifications:
- Lens Diameter: 5mm
- Luminous Intensity: 2.8 millicandelas
- Peak Wavelength: 650nm
- Viewing Angle: 45°
- Material: Gallium Phosphide (GaP)
- Power Dissipation: 45mW
- Operating Temperature Range: -40°C to +85°C
- Reversed Voltage: 5V
- Reverse Current: 10μA at 5V
- Lead Soldering Temperature Range: 260°C for 5 Seconds
- Dimensions: Diameter 5mm, typical lens height 4.6mm
Buy the Multicomp Pro MCL053PD – Reliable Red LED for Industrial Applications
Buy the Multicomp Pro MCL053PD red LED online now to ensure high-quality lighting in your LED applications. With a luminous intensity of 2.8 millicandelas, a 650nm peak wavelength, and a 45° viewing angle, it offers reliable performance for industrial and electronic projects. Made from Gallium Phosphide (GaP), this 5mm round LED supports operation from -40°C to +85°C. Easy to mount through-hole, it’s ideal for various automation, indicator, and illumination needs, providing longevity and consistent brightness in your designs.
Order your Multicomp Pro MCL053PD high-brightness red LED today and enhance your electronic projects with dependable illumination solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL053PD?
You can click on the BUY or RFQ button to purchase MCL053PD from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL053PD?
You can download the MCL053PD datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL053PD?
MULTICOMP-PRO
