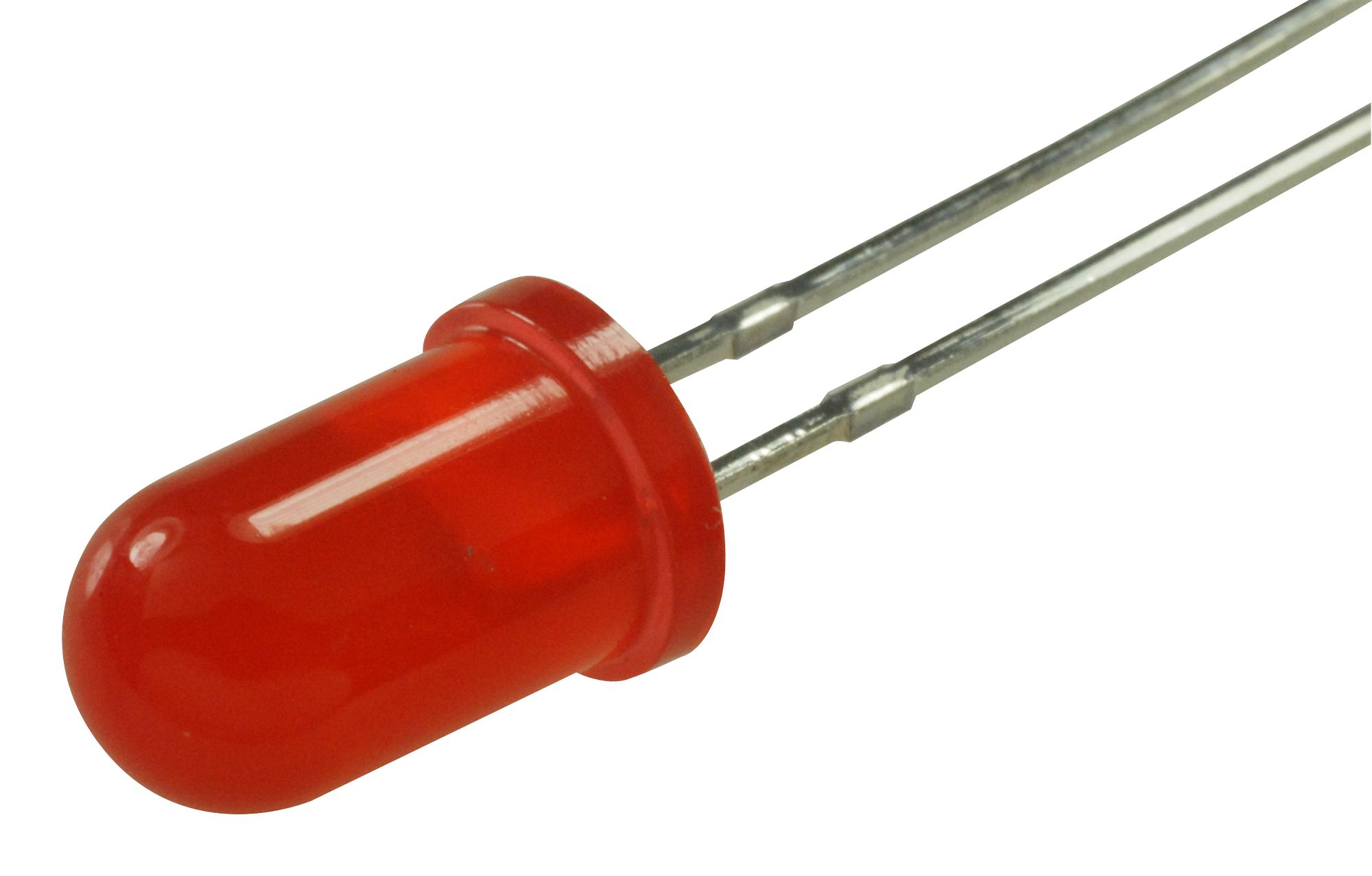

MULTICOMP-PRO MCL053SRD Red LED
The MCL053SRD is a top-quality, through-hole 5mm red LED with a diffused lens, made from GaAlAs semiconductor material. It offers a reverse voltage of 5V, reverse current of 10µA, and performs reliably within -40°C to 85°C. Designed for industrial and electronic applications, this LED has a peak wavelength of 660nm, luminous intensity of 50mcd at 20mA, viewing angle of 145°, and forward voltage around 1.85V. Its compact, durable construction ensures excellent optical performance and long-term operation in various environments.
MULTICOMP-PRO MCL053SRD Red LED Specifications:
- Dice Material: GaAlAs
- Emitted Colour: Super Red
- Lens Colour: Red Diffused
- Peak Wavelength: 660nm
- Viewing Angle: 145°
- Luminous Intensity: 50mcd at 20mA
- Reverse Voltage: 5V
- Reverse Current: 10µA at 5V
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Lead Soldering Temperature Range: 260°C for 5 Seconds at 4.6mm from body
- Forward Voltage: Typical 1.85V at 20mA
- Peak Forward Current: 100mA (duty cycle 1/10 at 1kHz)
- Spectral Line Half-Width: 20nm
- Peak Emission Wavelength: 660nm
Buy the Multicomp Pro MCL053SRD – Reliable Super Red LED for Industrial Applications
Order the high-quality Red LED with diffused lens, 660nm wavelength, and 50mcd brightness from our online store. Perfect for industrial, electronic, and lighting projects, this 5mm super red LED offers excellent optical performance, reliability, and long-lasting operation. With a broad operating temperature range from -40°C to 85°C and robust construction, it ensures consistent brightness and efficiency in various environments. Convenient online purchase enables quick delivery and reliable supply for your manufacturing or repair needs.
Get Multicomp Pro MCL053SRD today—built for precision, durability, and consistent optical performance in demanding environments.
