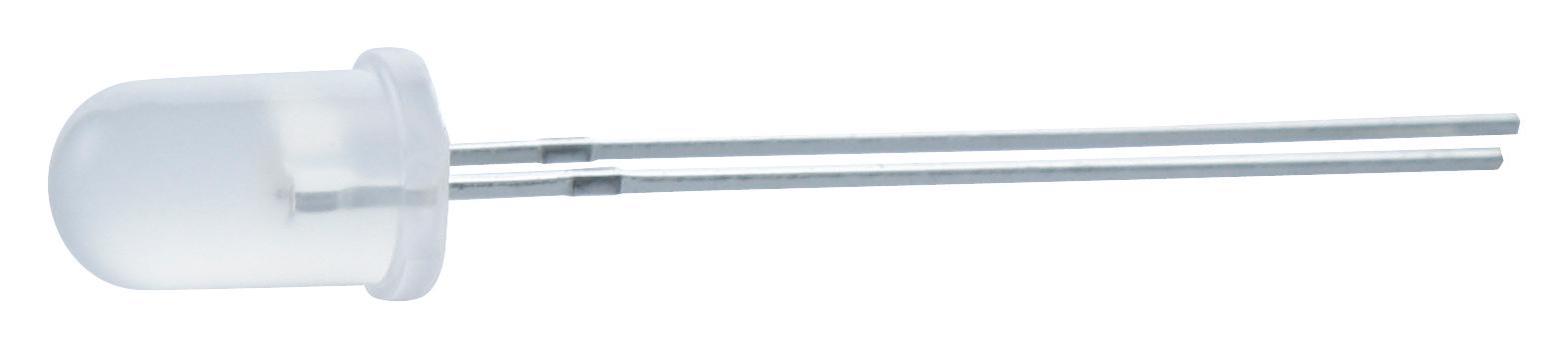

MULTICOMP-PRO MCL056PURGW Bi-Color LED Lamp
This 5mm bi-color red/green LED lamp from Multicomp Pro features super red and green emissions with peak wavelengths of 660nm and 568nm. It offers a viewing angle of 145°, luminous intensities of 50/15mcd at 20mA, and operates with a forward voltage of 1.8/2.1V. Suitable for various industrial and electronic applications, it withstands temperatures from -40°C to +85°C and supports lead soldering at 260°C for 5 seconds. Compact and RoHS compliant, it’s ideal for indicator lights and displays.
MULTICOMP-PRO MCL056PURGW Bi-Color LED Lamp Specifications:
- Diameter: 5mm
- Lens Color: White diffused
- Emitted Colors: Red (660nm), Green (568nm)
- Luminous Intensity: 50/15mcd at 20mA
- Forward Voltage: 1.8/2.1V at 20mA
- Peak Wavelength: 660nm (Red), 568nm (Green)
- Viewing Angle: 145°
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds
- Reverse Voltage: 5V
- Reverse Current: 10μA at VR=5V
- RoHS Compliant
- Material: GaAlAs (Red), GaP (Green)
- Peak Forward Current: 100mA (Duty 1/10 at 1kHz)
- Recommended Forward Current: 20mA
Buy the Multicomp Pro MCL056PURGW – Reliable Bi-Color LED for Industrial Applications
Discover the high-quality 5mm bi-color red/green LED lamp from Multicomp Pro, designed for reliable use in industrial and electronic displays. It features super red and green emissions with peak wavelengths at 660nm and 568nm, providing excellent visibility and performance. With a wide viewing angle of 145° and luminous intensity of 50/15mcd, this RoHS compliant LED can operate between -40°C and +85°C. Its compact design, robust electrical characteristics, and easy soldering process make it ideal for indicator lights, control panels, and electronic projects. Purchase online now for superior quality and durability.
Get Multicomp Pro MCL056PURGW today—built for precision and long-lasting durability in indicator lighting and display solutions.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL056PURGW?
You can click on the BUY or RFQ button to purchase MCL056PURGW from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL056PURGW?
You can download the MCL056PURGW datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL056PURGW?
MULTICOMP-PRO
