MULTICOMP-PRO MCL056YGW LED indicator light

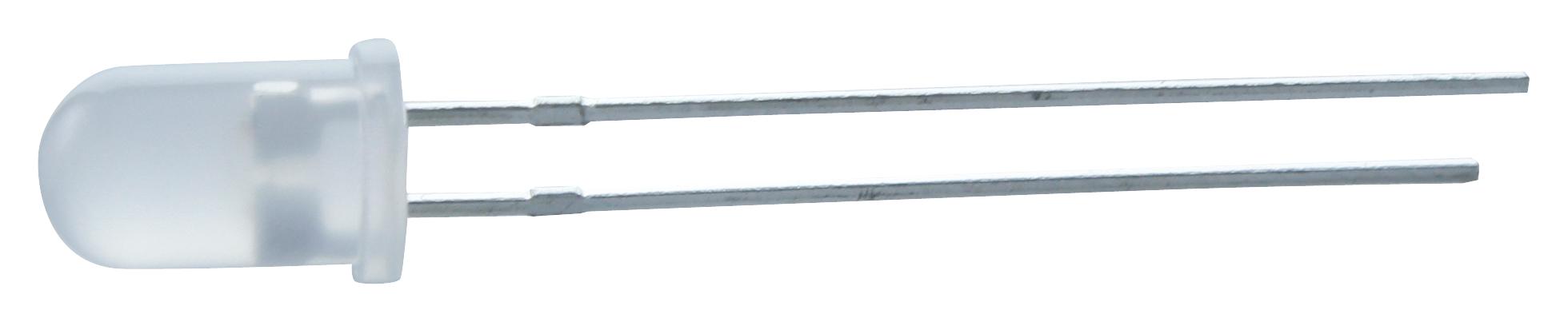

This 5mm multicomp LED emits yellow or green light and features RoHS compliance. It has a peak wavelength of 587/568 nm, a viewing angle of 145°, and operates reliably within -40°C to +85°C. The LED's dimensions are approximately 4.6mm in diameter with a maximum height of 8mm, making it suitable for indicator and display applications. Constructed with GaAsP on GaP substrates, it offers high luminous intensity, low forward voltage of around 1.7V to 2.6V, and sustained operation at up to 20mA current, ensuring durability in various environments.
MULTICOMP-PRO MCL056YGW LED indicator light Specifications:
- Dice Material: GaAsP on GaP
- Emitted Colour: Yellow / Green
- Lens Colour: White Diffused
- Peak Wavelength: 587/568 nm
- Viewing Angle: 145°
- Luminous Intensity: 14/15 mcd
- Reverse Voltage: 5V
- Reverse Current: 10 μA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds at 2.4mm from body
- Forward Voltage: 1.7V to 2.6V at 20mA
- Power Dissipation: Up to 85mW
- Maximum Dimensions: Diameter approximately 4.6mm, height approx. 8mm
Buy the MultiComp 5mm Yellow/Green LED – Reliable Indicator for Industrial Applications
Purchase the high-quality 5mm multi-color LED online today. Featuring RoHS compliance, high luminous intensity, and a wide operating temperature range, this LED is ideal for indicator, display, and signaling applications in industrial equipment. With a peak wavelength of 587/568 nm and a viewing angle of 145°, it ensures excellent visibility and durability. Easy to solder and reliable during long-term operation, this LED offers excellent performance in various environments, making it a perfect choice for your electronic projects and industrial applications.
Order your MultiComp 5mm yellow-green LED today and give your projects the dependable quality they deserve with high luminous intensity and durable operation.
