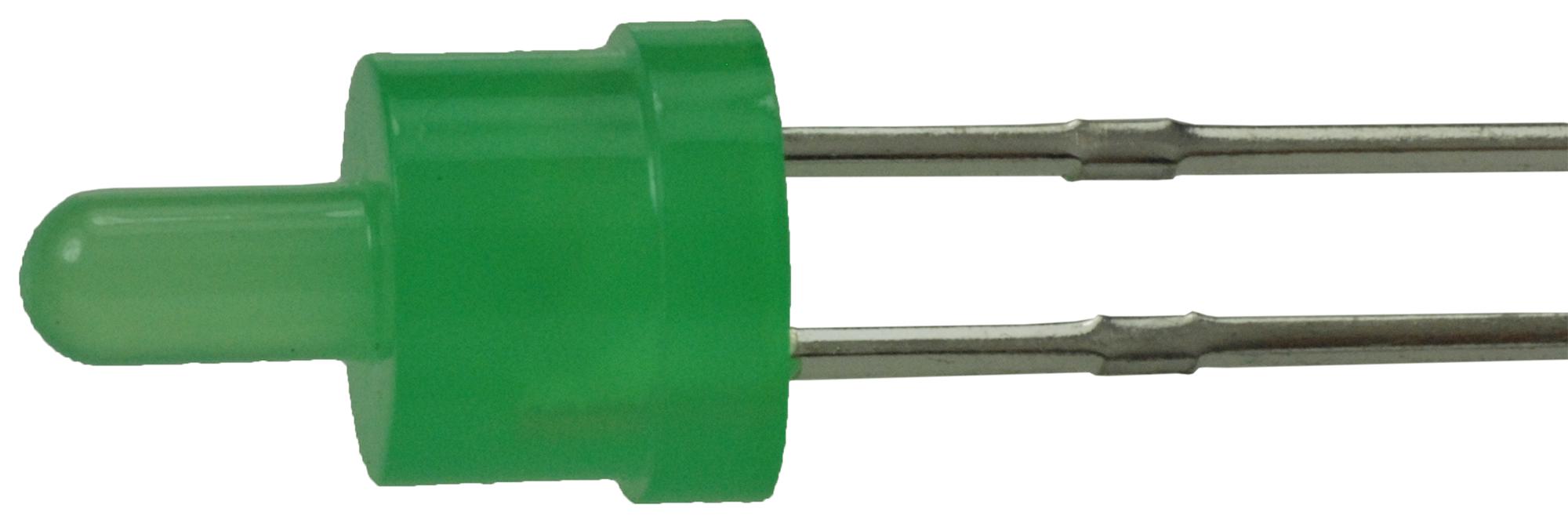

MULTICOMP-PRO MCL223GD Green LED
The MCL223GD is a high-quality green LED with a 2mm diffused lens, designed for industrial and electronic applications. Made from GaP (Gallium Phosphide), it emits at a peak wavelength of 568nm with a viewing angle of 60°. The LED features a forward voltage of 1.7 to 2.6V at 20mA and a luminous intensity of 7 mcd. It operates reliably within the temperature range of -40°C to 85°C, ensuring durability in various environments. Suitable for lighting, indicators, and displays, this LED offers consistent performance and easy mounting for seamless integration into electronic circuits.
MULTICOMP-PRO MCL223GD Green LED Specifications:
- Dice Material: GaP
- Emitted Colour: Green
- Lens Colour: Green Diffused
- Peak Wavelength: 568nm
- Viewing Angle: 60°
- Luminous Intensity: 7 mcd
- Reverse Voltage: 5V
- Reverse Current: 10μA
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature Range: 260°C for 5 seconds
- Forward Voltage: 1.7V to 2.6V at 20mA
- Power Dissipation: up to 85 mW
- Peak Forward Current: 100A at 1/10 duty cycle
- Recommended Operating Current: 20mA
Buy the Multicomp Series Green LED: MCL223GD
Experience the reliability and brightness of the green LED MCL223GD, ideal for indicators, lighting, and display applications. Featuring a diffused lens and GaP die, it provides a peak wavelength of 568nm and a 60° viewing angle. With durability in extreme temperatures from -40°C to 85°C, it supports easy surface mounting and consistent performance in industrial environments. Whether retrofitting existing designs or developing new hardware, this LED offers a compact, energy-efficient solution for all your illumination needs. Purchase online today and enhance your electronic assemblies with high-quality, long-lasting lighting components.
Order your Multicomp Series green LED MCL223GD today and add reliable illumination to your electronic projects with this efficient, high-performance LED.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL223GD?
You can click on the BUY or RFQ button to purchase MCL223GD from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL223GD?
You can download the MCL223GD datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL223GD?
MULTICOMP-PRO
