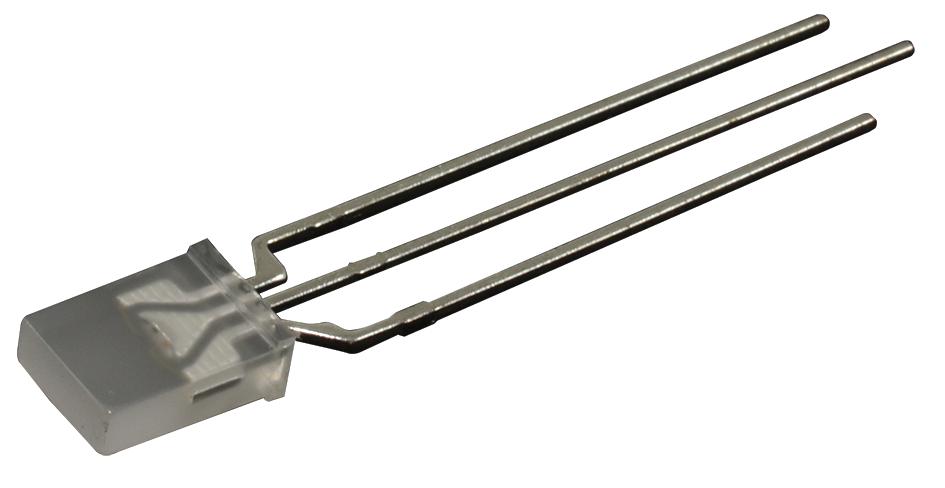

MULTICOMP-PRO MCL239PURGW Multi-Colour LED Lamp
This Multi-Colour LED Lamp provides vibrant red and green illumination with superb wavelength brightness and high luminous intensity, ideal for indicator and decorative applications. Designed with GaAlAs and GaP Co Pp a t dice, it features a white diffused lens and a wide viewing angle of 120°. Operating efficiently in temperatures from -40°C to +85°C, it supports a forward voltage of 1.5V to 2.6V at 20mA. Its robust construction ensures durability under soldering temperatures up to 260°C for 5 seconds, making it suitable for diverse lighting projects.
MULTICOMP-PRO MCL239PURGW Multi-Colour LED Lamp Specifications:
- Emission Colors: Super red and green
- Peak Wavelengths: 660nm (red), 568nm (green)
- Viewing Angle: 120°
- Luminous Intensity: 12/3.1 mcd (typical), 6/1.4 mcd (minimum)
- Forward Voltage: 1.5V to 2.6V at 20mA
- Reverse Voltage: 5V
- Reverse Current: 10 µA at VR = 5V
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -40°C to +100°C
- Lead Soldering Temperature: 260°C for 5 seconds at 2.4mm from body
- Dimensions: 5mm diameter x 2.8mm height
- Lens Type: White diffused
- Electrical/Optical Characteristics: Typical luminous intensity of 3.1 mcd at 20mA, Peak emission wavelength of 660/568nm
Buy the Buy multicomp Multi-Colour LED Lamp Part Number MCL239PURGW Online
Enhance your projects with our reliable Multi-Colour LED Lamp offering vibrant red and green colors, wide viewing angle, and durable construction. Designed for indicators and decorative lighting, this LED supports a forward current of 20mA and a voltage range from 1.5V to 2.6V. Its white diffused lens ensures uniform light distribution, while the wide temperature range guarantees consistent performance in various environments. Easy to solder with a maximum temperature of 260°C for 5 seconds, it’s perfect for a broad range of applications.
Buy multicomp MCL239PURGW LED lamp now and enjoy vibrant red and green illumination with high reliability and performance for your lighting needs.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCL239PURGW?
You can click on the BUY or RFQ button to purchase MCL239PURGW from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL239PURGW?
You can download the MCL239PURGW datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCL239PURGW?
MULTICOMP-PRO
