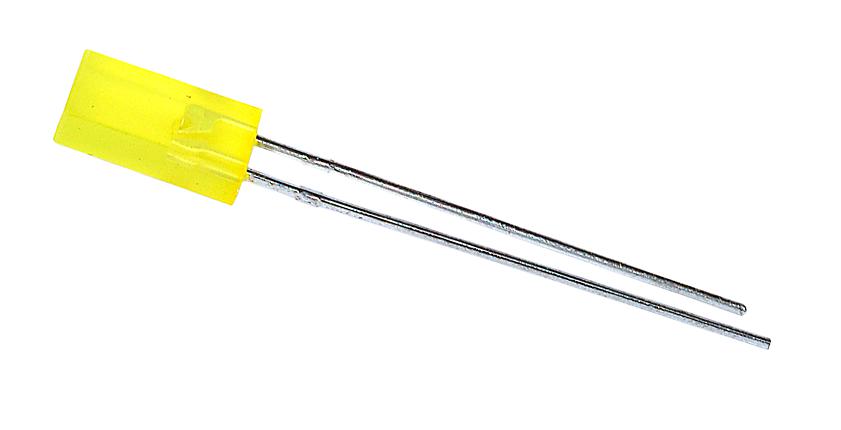

MULTICOMP PRO MCL453YD Rectangular LED
This yellow rectangular LED from MultiComp Pro measures 2mm by 5mm and features a 120° viewing angle. It emits yellow light at a peak wavelength of 587nm, with a luminous intensity of 3.4mcd at 20mA. Built with GaAsP on GaP dice material, it operates over a temperature range of -40°C to 85°C and a storage range of -40°C to 100°C. The LED can withstand peak forward currents of up to 100mA during duty cycles and has a max reverse voltage of 5V, making it ideal for indicator and display applications.
MULTICOMP PRO MCL453YD Rectangular LED Specifications:
- Dimensions: 2mm x 5mm (0.08 x 0.20 inches)
- Peak Wavelength: 587nm
- Luminous Intensity: 3.4mcd at 20mA
- Viewing Angle: 120°
- Forward Voltage: 1.7V at 20mA
- Reverse Voltage: 5V
- Maximum Reverse Current: 10μA
- Operating Temperature Range: -40°C to 85°C
- Storage Temperature Range: -40°C to 100°C
- Peak Forward Current: 100mA (duty cycle 1/10 at 1kHz)
- Power Dissipation: up to 85mW
- Lead Soldering Temperature: 260°C for 5 seconds at 4.6mm from body
- Dice Material: GaAsP on GaP
- Lens Colour: Yellow Diffused
Buy the Buy MultiComp Pro Yellow Rectangular LED Part Number MCL453YD Online
Order the high-quality yellow rectangular LED from MultiComp Pro online today. This 2mm x 5mm LED features a 120° viewing angle, peak wavelength of 587nm, and luminous intensity of 3.4mcd at 20mA. Built with durable GaAsP on GaP dice material, it operates within -40°C to 85°C and withstands peak currents up to 100mA. Ideal for indicators, displays, and electronic projects, ensuring clear, bright illumination with reliable performance and easy soldering capabilities. Buy now for quick delivery and outstanding performance.
Get MultiComp Pro MCL453YD today—designed for reliable indicator and display applications with long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCL453YD?
You can click on the BUY or RFQ button to purchase MCL453YD from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCL453YD?
You can download the MCL453YD datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCL453YD?
MULTICOMP PRO
