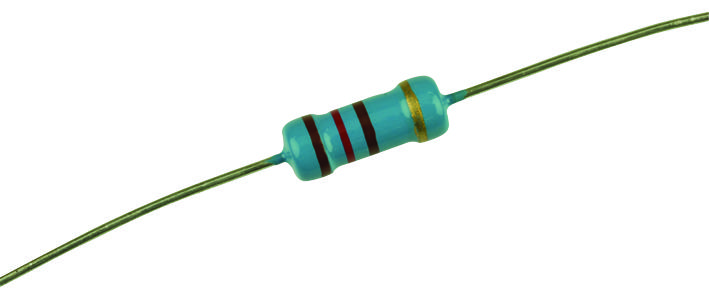

MULTICOMP PRO MCMF01WJJ0121A10 Precision Metal Film Resistor
This precision metal film resistor features a rod-shaped ceramic body with a tin-plated steel end cap and an annealed copper wire coated with sky blue epoxy resin. Designed for reliable performance, it offers minimum insulation resistance of 1000MΩ, dielectric withstanding voltage of 500V, maximum working voltage of 250V, and overload voltage of 500V. It operates effectively within -55°C to 155°C, ensures low noise and voltage coefficient, and is suitable for high-precision applications requiring stable, moisture-protected performance in small-sized packages.
MULTICOMP PRO MCMF01WJJ0121A10 Precision Metal Film Resistor Specifications:
- Physical: Rod-shaped ceramic body, terminal leads bent at approximately 6mm, rotated 360° for three turns
- Electrical: Minimum insulation resistance 1000MΩ, dielectric withstand voltage 500V, maximum working voltage 250V, overload voltage 500V
- Environmental: Operating temperature from -55°C to 155°C, moisture protection via epoxy coating, low noise, and voltage coefficient
- Construction: Tin-plated steel end cap, annealed copper wire, sky blue epoxy resin coating, flame retardant options available
- Performance: Short time overload + (0.5% + 0.050), load life in humidity + (1.5% + 0.050), resistance to soldering heat + (1% + 0.05Ω), dielectric withstanding voltage 500V
Buy the Buy Multicomp Precision Metal Film Resistor Part Number MCMF01WJJ0121A10 Online
Order the high-precision metal film resistor MCMF01WJJ0121A10 online today to ensure your electronic projects benefit from superior stability, low noise, moisture resistance, and wide temperature operation. Perfect for sensitive applications demanding tight tolerance and dependable performance. This resistor is ideal for automation, instrumentation, and control systems where durability and precision are critical. With fast delivery, secure checkout, and expert support, acquiring this resistor online guarantees your components meet industry standards for quality and reliability.
Buy Multicomp precision metal film resistor MCMF01WJJ0121A10 now and experience unmatched reliability and performance in high-accuracy electronic circuits.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF01WJJ0121A10?
You can click on the BUY or RFQ button to purchase MCMF01WJJ0121A10 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF01WJJ0121A10?
You can download the MCMF01WJJ0121A10 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF01WJJ0121A10?
MULTICOMP PRO
