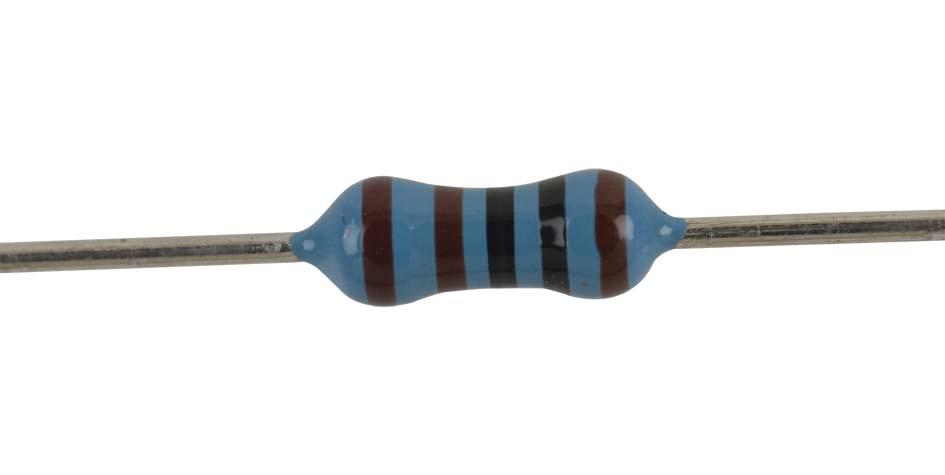

MULTICOMP PRO MCMF0W4FF1001A50 Metal Film Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features a reliable nichrome resistor element and a protective epoxy coating on vacuum-deposited metal film, offering excellent moisture resistance. It meets EIA standard color-coding and provides options for non-flame types. The resistor has low noise, minimal voltage and temperature coefficients, and a broad range of precision values in a compact form factor. Custom resistance values, including very low and very high ohmic, can be supplied case-by-case. Ideal for hobby, education, and electronics design projects with high reliability and stability.
MULTICOMP PRO MCMF0W4FF1001A50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: calculated from power and resistance
- Max. Overload Voltage: not specified
- Dielectric Withstanding Voltage: 00V
- Operating Temp. Range: -55°C to +155°C
- Resistance Range: 100 to 1MΩ
- Resistance Tolerance: 40.1% and 24.1% (Series dependent)
- Temperature Coefficient: ±50 PPM/°C
- Phys Dimensions: body diameter 2.5mm, length 6.8mm, lead length 28mm
- Construction: Ceramic body, metal film resistor, steel end caps, annealed copper leads coated with tin
- Insulation Resistance: min 10,000 MΩ
- Soldering Temp.: 245°C for 2-3 seconds, 95% coverage
- Vibration Resistance: 55Hz, 3 planes, 2 hours each
- Load Life: 1000 hours at RCWV with ≤±1.5% resistance change
Buy the Buy Multicomp Metal Film Fixed Resistor Part Number MCMF0W4FF1001A50 Online
Enhance your electronics projects with the high-precision Metal Film Resistor from Multicomp. Featuring excellent moisture resistance, low noise, and minimal voltage and temperature coefficients, this resistor provides exceptional stability in various applications. Available in a wide resistance range including very low and high ohmic values, it is suitable for hobbyists, students, and professional engineers alike. Order online now and benefit from fast delivery, competitive pricing, and the confidence of using dependable, quality components to ensure optimal circuit performance.
Order your Multicomp metal film resistor MCMF0W4FF1001A50 today and ensure your electronic designs have reliable, precision components.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF0W4FF1001A50?
You can click on the BUY or RFQ button to purchase MCMF0W4FF1001A50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4FF1001A50?
You can download the MCMF0W4FF1001A50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF0W4FF1001A50?
MULTICOMP PRO
