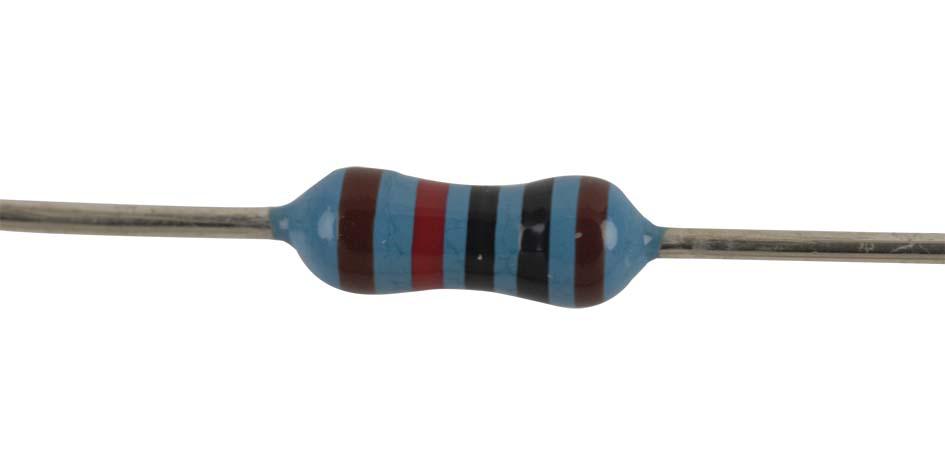

MULTICOMP PRO MCMF0W4FF1002A50 Metal Film Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features epoxy coating for moisture protection and a vacuum-deposited metal film for stability. Its nichrome resistor element ensures consistent performance across environments. Compliant with EIA standard color-coding, options include non-flame types. This resistor offers low noise, low voltage coefficient, and a broad range of precision ratings in a compact size. Custom resistance values, either very low or high, can be supplied case-by-case. Suitable for precision applications in various industrial and electronic circuits. Rated power is 0.25W at 70°C, with a max operating temp of +155°C, ensuring durability and reliability.
MULTICOMP PRO MCMF0W4FF1002A50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: 400V
- Operating Temp. Range: -55°C to +155°C
- Resistance Tolerance: 40.1% (series specific)
- Resistance Range: 100 to 1MΩ
- Material: Metal film with epoxy coating
- Construction: Rod type ceramics body, tin-plated steel end caps
- Lead Wire: Annealed copper wire coated with tin
- Insulation Resistance: 10,000 MΩ min.
- Dielectric Withstanding Voltage: 00V
- Temperature Coefficient: ±50 PPM/°C
- Soldering Temperature: 245°C for 2-3 seconds
- Marking: Color coding per JIS C 0802
- Vibration and load life tested for durability
- Custom resistance values available upon request
Buy the Buy Multicomp MCMF0W4FF1002A50 Metal Film Resistor Precision Reliability
Purchase the Multicomp Metal Film Fixed Resistor online today for reliable circuit performance in industrial electronics. With a power rating of 0.25W at 70°C, excellent moisture resistance, and a wide resistance range from 100 to 1MΩ, this resistor ensures stable and accurate performance across varied environments. Its epoxy coating, low noise, and customizable resistance values make it ideal for precision instrumentation, control systems, and high-reliability electronic applications. Order now to ensure long-lasting, dependable circuit solutions with fast shipping and excellent customer support.
Get Multicomp Metal Film Fixed Resistor today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF0W4FF1002A50?
You can click on the BUY or RFQ button to purchase MCMF0W4FF1002A50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4FF1002A50?
You can download the MCMF0W4FF1002A50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF0W4FF1002A50?
MULTICOMP PRO
