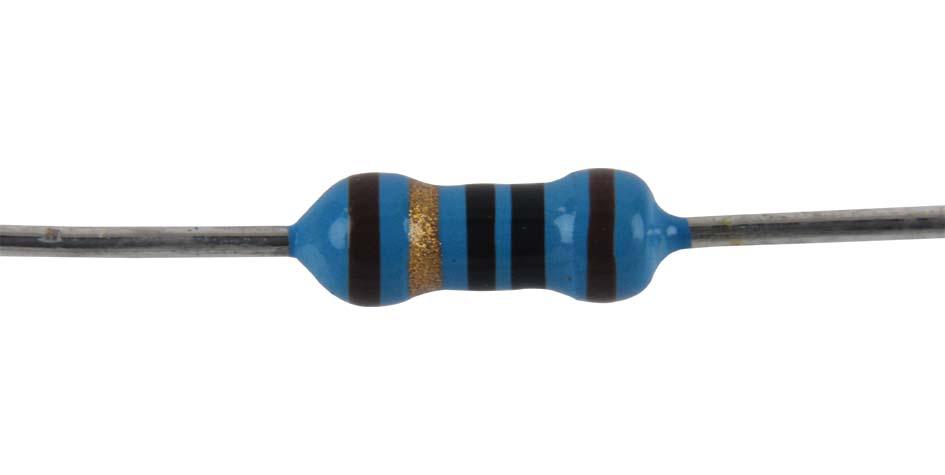

MULTICOMP PRO MCMF0W4FF100JA50 Metal Film Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features a metal film core with epoxy coating for moisture protection. Utilizing a nichrome resistor element, it ensures stable performance across environmental conditions. Compliant with EIA color coding and available in non-flame retardant versions, it delivers low noise, minimal voltage and temperature coefficients. Its wide range of precision values in a compact form factor makes it ideal for high-accuracy circuits. Custom ohmic resistances can be requested, making this series versatile for various electronic applications. Rated for 0.25W at 70°C, it offers reliable, stable operation in harsh environments. Multicomp Pro products are rated 4.6 stars, with a 12-month warranty, preferred by many professionals.
MULTICOMP PRO MCMF0W4FF100JA50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: Based on power rating and resistance
- Resistance Range: 100 to 1MQ
- Operating Temp. Range: -55°C to +155°C
- Resistance Tolerance: 40.1% for MCMFOW4B, 24.1% for MCMFOW4F
- Material: Metal film core, epoxy coating
- Lead Material: Annealed copper wire coated with tin
- Insulation Resistance: 10,000MQ Min.
- Temperature Coefficient: 50 PPM/°C Max.
- Construction: Ceramic body, steel end caps, welded joints
- Soldering Temp.: 245°C ± 3°C in 2-3 sec.
- Solderability: 95% coverage Min.
- Dimensions: Body diameter: 2.5mm, length: 6.8mm, lead diameter: 0.54mm
Buy the Multicomp Series MCMF Metal Film Resistor: 100J
Order the Multicomp Series MCMF metal film fixed resistor online today for reliable performance in high-precision electronic circuits. Designed for stability and moisture resistance, these resistors are perfect for demanding applications. They offer a wide resistance range, low noise, and excellent temperature stability, making them suitable for precision instrumentation, control systems, and aerospace uses. Backed by a 12-month warranty, secure your high-quality resistor with just a click, ensuring your projects meet the highest standards of reliability and efficiency.
Get Multicomp Series MCMF 100J resistance today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF0W4FF100JA50?
You can click on the BUY or RFQ button to purchase MCMF0W4FF100JA50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4FF100JA50?
You can download the MCMF0W4FF100JA50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF0W4FF100JA50?
MULTICOMP PRO
