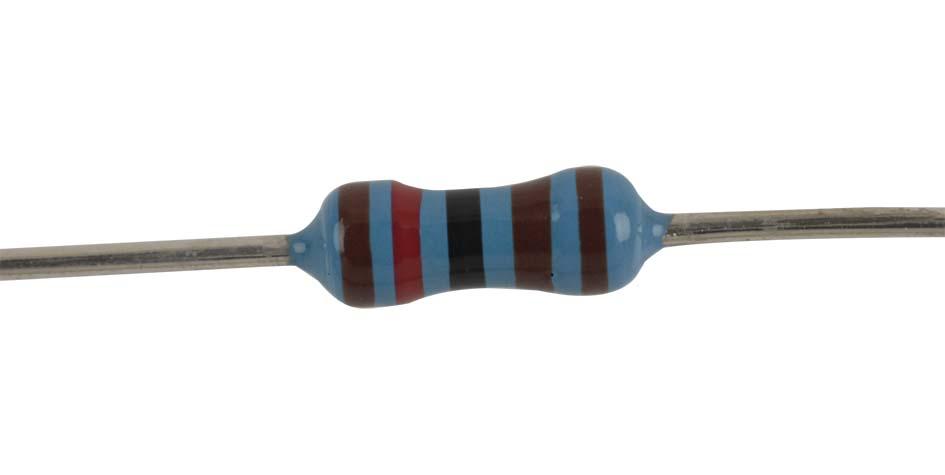

MULTICOMP PRO MCMF0W4FF1201A50 Precision Metal Resistor
The MCMF0W4 series axial-leaded precision metal film fixed resistor features epoxy coatings on a vacuum-deposited metal film, ensuring moisture resistance. Using a Nichrome resistor element, it maintains stable performance in diverse environments, with low noise and voltage coefficient. Compliant with EIA color-coding standards, it offers a low temperature coefficient and is available in a broad precision range within a compact form factor. Customizable with very low or high ohmic values, it’s suitable for high-accuracy electronic circuits and offers reliability under various conditions. Multicomp Pro supplies this resilient resistor with a 4.6-star rating and a 12-month warranty, recommended by most customers.
MULTICOMP PRO MCMF0W4FF1201A50 Precision Metal Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: Calculated from P=0.25W and resistance
- Resistance Range: 100Ω to 1MΩ
- Operating Temp. Range: -55°C to +155°C
- Resistance Tolerance: ±1% (for certain series)
- Material: Metal Film with epoxy coating
- Dielectric Withstanding Voltage: 400V
- Insulation Resistance: 10,000MΩ minimum
- Temperature Coefficient: ±50 PPM/°C
- Construction: Ceramic body, steel end caps, annealed copper leads
- Size: Compact packages suitable for precision applications
- Features: Moisture resistant, low noise, low temperature coefficient
Buy the Buy Multicomp Precision Metal Film Resistor Part Number MCMF0W4FF1201A50 Online
Purchase the Multicomp Precision Metal Resistor MCMF0W4FF1201A50 online today to ensure high accuracy, stability, and moisture resistance in your electronic applications. With a rated power of 0.25W, operating temperature range from -55°C to +155°C, and resistance values from 100Ω to 1MΩ, this resistor is ideal for precision circuits requiring low noise and stable performance. Its epoxy coating provides moisture protection, and it conforms to industry standards. Enjoy fast delivery, competitive pricing, and the assurance of a 12-month limited warranty when you buy online now.
Order your Multicomp SeriesMCMF0W4FF1201A50 precision resistor today and enhance your electronic projects with reliable performance and stability.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF0W4FF1201A50?
You can click on the BUY or RFQ button to purchase MCMF0W4FF1201A50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4FF1201A50?
You can download the MCMF0W4FF1201A50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF0W4FF1201A50?
MULTICOMP PRO
