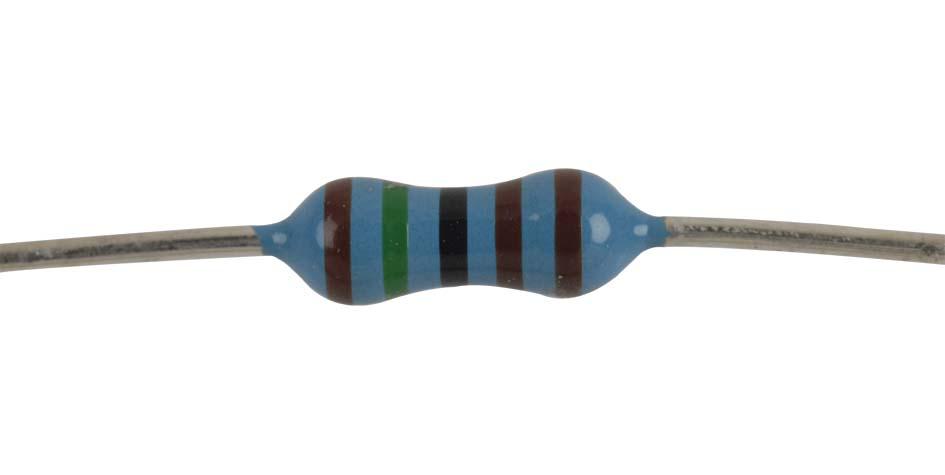

MULTICOMP PRO MCMF0W4FF1501A50 Metal Film Resistor
The metal film fixed resistor series offers a robust, epoxy-coated construction with vacuum-deposited metal film, ensuring excellent moisture resistance. Utilizing nichrome resistance elements, these resistors deliver stable performance across diverse environmental conditions. They are built to EIA color-coding standards, with options available in both flame-retardant and non-flame-retardant variants. Known for low noise, minimal voltage and temperature coefficients, and high precision, they come in various resistance values suitable for low to high-ohmic applications. Manufactured with high quality standards, these resistors are ideal for precision electronic circuits and industrial equipment.
MULTICOMP PRO MCMF0W4FF1501A50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: determined by P x R / V
- Operating Temp. Range: -55°C to +155°C
- Resistance Range: 100 to 1MΩ
- Temperature Coefficient: ±50 PPM/°C
- Resistance Tolerance: 1% or 2%
- Resistance Tolerance Series: MCMFOW4B and MCMFOW4F
- Construction: Ceramic rod with metal film, epoxy coated
- End Cap Material: Steel, Tin plated iron surface
- Lead Wire: Annealed copper coated with tin
- Insulation Resistance: ≥10,000 MΩ
- Dielectric Withstanding Voltage: 400V
- Soldering Temp.: 245°C ±3°C
- Solderability Coverage: Min 95%
- Vibration Resistance: 55Hz, 3 planes, 2hrs each
- Load Life: +1.5% after 1000 hours at RCWV
- Environmental Compliance: RoHS compliant
Buy the Multicomp Series MCMF Metal Film Resistor: 1501A50
Buy the high-precision Multicomp Series Metal Film Resistor today online and enhance your electronic assemblies with reliable, low-noise, and temperature-stable resistance. Perfect for industrial circuits and demanding environments, this resistor combines durable construction with superior moisture resistance and minimal voltage and temperature coefficients. Featuring a compact design, it offers a wide resistance range from 100Ω to 1MΩ, making it versatile for various applications. Secure fast delivery and excellent support by purchasing online now, ensuring your project remains on schedule and meets the highest quality standards.
Order your Multicomp Series MCMF1501A50 precision metal film resistor today and ensure the stability and accuracy needed for your critical electronics projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF0W4FF1501A50?
You can click on the BUY or RFQ button to purchase MCMF0W4FF1501A50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4FF1501A50?
You can download the MCMF0W4FF1501A50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF0W4FF1501A50?
MULTICOMP PRO
