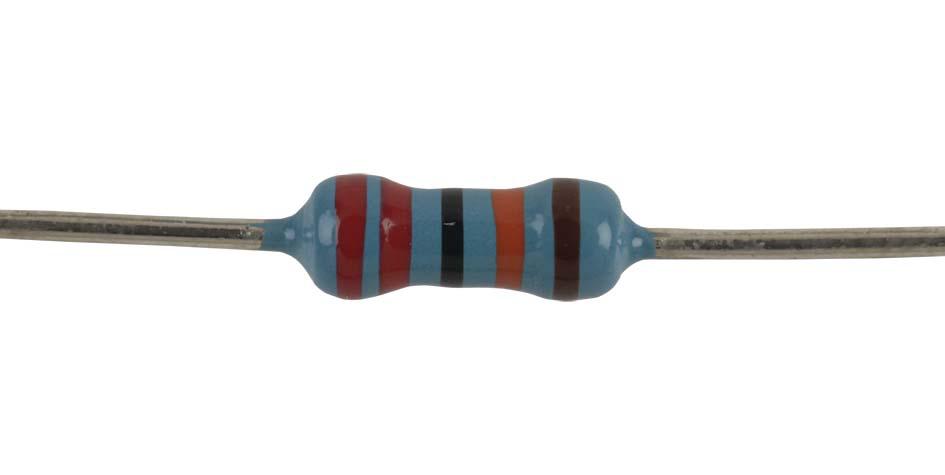

MULTICOMP-PRO MCMF0W4FF2203A50 Metal Film Resistor
The metal film resistor is a high-precision axial-leaded component with a durable epoxy coating for moisture resistance. It uses a nichrome element for stability and low noise. Suitable for sensitive electronic circuits, it features excellent moisture protection, low voltage coefficient, and compliance with EIA color codes. Available in various resistance values, including custom options, it is ideal for applications requiring reliable performance. Rated highly by users, it comes with a 12-month warranty, making it a dependable choice for industrial, commercial, and hobbyist electronics projects.
MULTICOMP-PRO MCMF0W4FF2203A50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: Calculated from P=0.25W, Resistance value
- Operating Temp. Range: -55°C to +155°C
- Resistance Tolerance: 40.1% (Series: MCMFOW4B), 24.1% (Series: MCMFOW4F)
- Resistance Range: 100 to 1MΩ
- Material: Metal film, nichrome resistor element
- Body Material: Ceramics with epoxy resin coating
- End Cap Material: Tin-plated steel
- Lead Wire: Annealed copper coated with tin
- Insulation Resistance: 10,000 MΩ minimum around the body
- Dielectric Withstanding Voltage: 400V
- Temp. Coefficient: ±50 PPM/°C
- Soldering Temp.: 245°C ±3°C for 2-3 seconds
- Solderability: 95% minimum coverage
- Mechanical Endurance: No evidence of mechanical damage after test
- Dimensions: Diameter up to 0.54mm, length approx. 28mm, lead length based on series
- Vibration Resistance: 55Hz, 3 planes, 2 hours each
Buy the Buy Multicomp Metal Film Fixed Resistor Part Number MCMF0W4FF2203A50 Online
Enhance your electronic projects with the high-precision metal film resistor from Multicomp Pro. Featuring a robust epoxy coating and nichrome element, it offers exceptional moisture resistance, low noise, and stable performance across a wide temperature range. Suitable for both professional and hobbyist applications, this resistor is available in various resistance values, including custom options, providing versatile solutions for your electrical needs. Purchase online today and benefit from fast delivery and trusted quality for your sensitive circuits.
Order your Multicomp Metal Film Fixed Resistor part number MCMF0W4FF2203A50 today and ensure your electronic projects achieve reliable performance with high precision and moisture resistance.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCMF0W4FF2203A50?
You can click on the BUY or RFQ button to purchase MCMF0W4FF2203A50 from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4FF2203A50?
You can download the MCMF0W4FF2203A50 datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCMF0W4FF2203A50?
MULTICOMP-PRO
