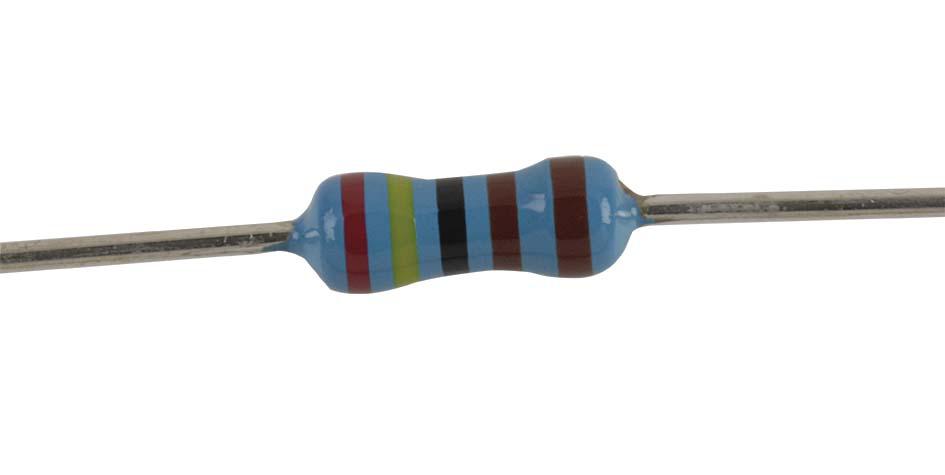

MULTICOMP PRO MCMF0W4FF2401A50 Metal Film Resistor
The metal film fixed resistor from the multicomp:ro series provides precise, reliable performance with enhanced moisture resistance due to epoxy coating. Made with a nichrome resistor element, it ensures stable performance across diverse environments. Compliant with EIA color-coding standards, this resistor features low noise, minimal voltage and temperature coefficients, and an extensive range of high-precision values in a compact form. Available options include non-flame-resistant versions, and custom resistance values can be supplied outside standard ranges. Trusted by users, it offers excellent durability, making it ideal for demanding electronic applications.
MULTICOMP PRO MCMF0W4FF2401A50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: Derived from Power Rating and Resistance
- Operating Temp. Range: -55°C to +155°C
- Resistance Range: 100 to 1MΩ
- Resistance Tolerance: ±1% (standard), ±0.5%, ±2% (series dependent)
- Resistance Film: Metal Film
- Construction: Ceramics body, tin-plated steel end caps, annealed copper leads
- Insulation Resistance: Min. 10,000 MΩ around body
- Temperature Coefficient: ±50 PPM/°C
- Dielectric Withstanding Voltage: 400V
- Soldering Temp.: 245°C for 3 seconds, wave and hand soldering compatible
- External Dimensions: Body diameter approximately 2.5mm, length 6.8mm, lead length 28mm
- Color Coding: JIS C 0802 standard
- Marking: Resistance value, tolerance, lot number, PPM
- Construction Material: Nichrome resistor element, epoxy resin coating
Buy the Multicomp Series MCMF Metal Film Resistor: 2401A50
Purchase the high-precision Metal Film Resistor from multicomp:ro series online today, designed with epoxy coating for superior moisture resistance. Featuring a nichrome element for stability, it offers low noise, minimal voltage and temperature coefficients, and a broad selection of resistance values in a compact size. Ideal for precision electronic circuits, it supports reliable performance across various environments. Custom resistance values are available on request, and backed by trusted warranties. Ensure your projects are equipped with durable, high-quality resistors available for quick online orders with fast delivery.
Get Multicomp Series MCMF2401A50 today—built for precision and long-lasting durability in demanding electronic applications.
