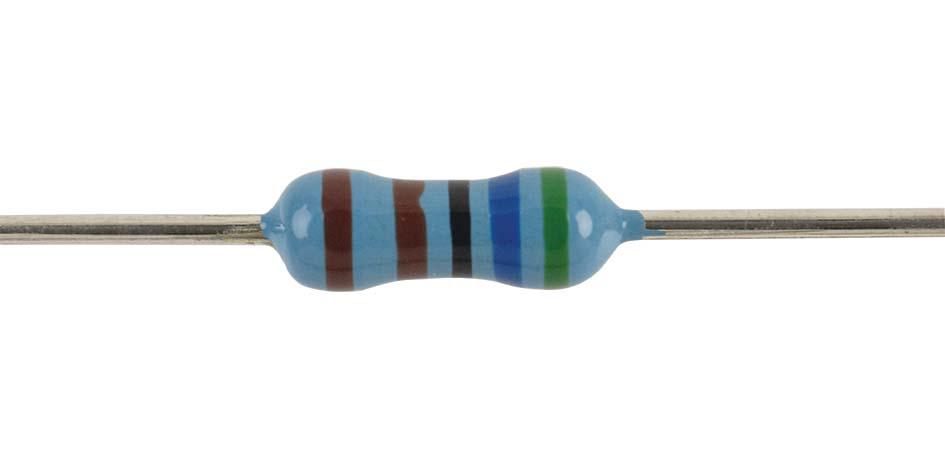

MULTICOMP PRO MCMF0W4FF5601A50 Metal Film Resistor
The axial-leaded precision metal film fixed resistor series features vacuum-deposited metal films with epoxy coatings for moisture resistance. Using nichrome resistive elements, it offers stable performance across environments, low noise, and minimal voltage and temperature coefficients. Conforming to EIA colour coding, these resistors are available in a wide resistance range from very low to very high ohmic values, in a compact package. Ideal for precision applications requiring high stability and reliability, with optional non-flame versions and enhanced moisture resistance, making them suitable for industrial and electronic device applications.
MULTICOMP PRO MCMF0W4FF5601A50 Metal Film Resistor Specifications:
- Type: MCMF
- Rated Power: 0.25W at 70°C
- Max. Working Voltage: Calculated from P×R, not exceeding maximum rating
- Operating Temp. Range: -55°C to +155°C
- Resistance Tolerance: ±1% for certain series, ±2% for others
- Resistance Range: 100 to 1MΩ
- Resistance change: ±0.5% over overload at 2.5 times RCWV for 5 seconds
- Insulation Resistance: Min. 10,000 MΩ around body
- Temperature Coefficient: ±50 PPM/°C
- Construction: Ceramic rod body, metal film resistor, tin-plated steel end caps, annealed copper lead wires coated with tin
- Dielectric Withstanding Voltage: 00V
- Operating Temp.: -55°C to +155°C
- Soldering Temp.: 245°C ±3°C, dwell 2-3 seconds
- Terminal Strength: Bending and twisting tested, no damage
- Vibration Resistance: 55Hz, 3 planes, 2 hours each
- Humidity Resistance: Normal humidity load at 40°C, 90-95% RH for 1,000 hours
- Solderability: ≥95% coverage after immersion and wave soldering
Buy the Multicomp Series MCMF Metal Film Resistor Reliability: MCMF0W4FF5601A50
Order Multicomp Metal Film Resistors online today to benefit from high precision, low noise, and excellent stability. Perfect for industrial electronics, automation, and precision measurement systems. These resistors offer a wide resistance range, robust construction, and moisture resistance, ensuring durable performance in demanding environments. With quick delivery and competitive pricing, upgrading your electronic components has never been easier. Shop now to enhance your manufacturing or repair processes with trusted, high-quality resistors designed for reliable, long-term operation.
Buy Multicomp Metal Film Resistors now and experience unmatched reliability and performance in your electronic projects and industrial designs.
