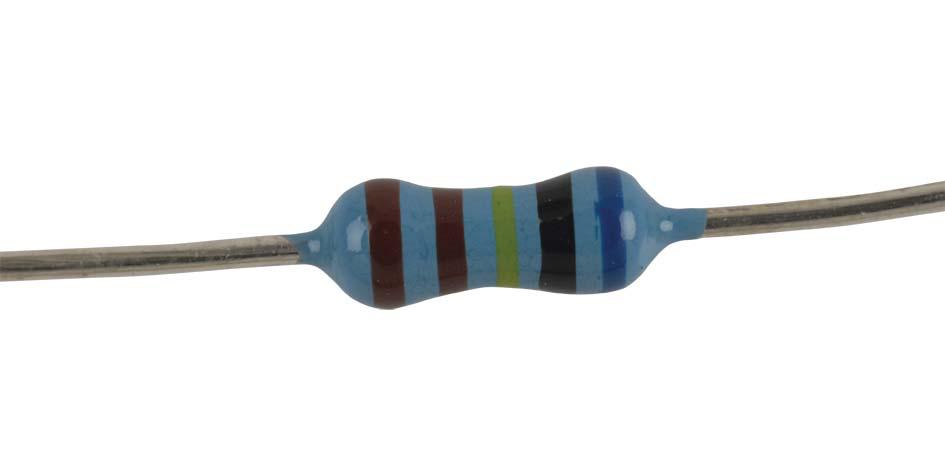

MULTICOMP PRO MCMF0W4FF6041A50 Metal Film Resistor
The metal film resistor series features epoxy-coated construction with vacuum-deposited metal film for excellent moisture resistance. It uses a nichrome element for stable performance in various environments, conforms to EIA color standards, and provides low noise, low voltage coefficient, and precise resistance values in a compact size. Custom resistance options are available, making it suitable for high-accuracy applications. Designed for reliable use across diverse industrial scenarios, these resistors ensure long-lasting performance and precision in electronic circuits.
MULTICOMP PRO MCMF0W4FF6041A50 Metal Film Resistor Specifications:
- Type: Metal Film Fixed Resistor
- Power Rating: 0.25W at 70°C
- Max. Working Voltage: Derived from R and P calculations
- Resistance Range: 100Ω to 1MΩ
- Resistance Tolerance: 1% (MCMF0W4 series typical)
- Operating Temperature: -55°C to +155°C
- Temperature Coefficient: ±50 PPM/°C
- Insulation Resistance: Min. 10,000 MΩ
- Dielectric Withstanding Voltage: 200 V
- Construction: Epoxy-coated body, ceramic rod, tin-plated steel end caps, annealed copper leads
- Soldering Temperature: 245°C for 2-3 seconds, 95% min. coverage
- Terminals: Mechanical strength with twist and load tests
- Dimensions: Length approx. 6.8mm, diameter 0.54mm, lead wire length around 28mm
Buy the Buy Multicomp Metal Film Resistor Precision Part Number MCMF0W4FF6041A50
Purchase Multicomp Metal Film Resistor online now to ensure high accuracy, stability, and durability for your electronic projects. Perfect for industrial applications requiring precise resistance values, these resistors feature epoxy coating, stable nichrome elements, and conform to industry standards. With a broad resistance range from 100Ω to 1MΩ, low noise, and excellent moisture resistance, they guarantee reliable performance in complex circuits. Enjoy fast delivery and seamless ordering experience—get your resistor today and power your industrial electronics with confidence.
Get Multicomp Metal Film Resistor today—designed for stable performance and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMF0W4FF6041A50?
You can click on the BUY or RFQ button to purchase MCMF0W4FF6041A50 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMF0W4FF6041A50?
You can download the MCMF0W4FF6041A50 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMF0W4FF6041A50?
MULTICOMP PRO
