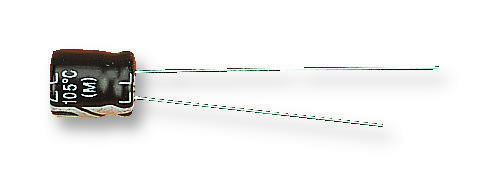

MULTICOMP PRO MCMHR25V226M63X7 Aluminum Electrolytic Capacitor
This high-performance aluminum electrolytic capacitor with a 22UF capacitance and 50V voltage rating is designed for high-density electronic devices such as compact power supplies, digital equipment, and audio-visual systems. It features a small body length of just 7mm, making it ideal for space-constrained applications. The capacitor operates within a temperature range of -40°C to +105°C, offering excellent stability and low leakage current. It supports high-temperature loading and has a long shelf life, making it suitable for demanding electronic environments.
MULTICOMP PRO MCMHR25V226M63X7 Aluminum Electrolytic Capacitor Specifications:
- Capacitance: 22UF
- Voltage Rating: 50V
- Operating Temperature Range: -40°C to +105°C
- Leakage Current: 0.01CV or 3μA after two minutes
- Dissipation Factor (Tan δ): Maximum 0.24 at 6.3V, 0.20 at 10V, 0.16 at 16V, 0.14 at 25V, 0.12 at 35V, 0.10 at 50V, 0.08 at 63V
- Dimensions: Diameter 6.3mm, Length 7mm
- Lifecycle: Withstands 1000 hours at +105°C with maintained leakage current, capacitance within 420%, and dissipation factor within 200%
- Shelf Life: 500 hours at +105°C with no voltage applied, same limits as high-temperature loading
- Supports circuit-board cleaning within 5 minutes using Freon TE, TES, ultrasonic, or steam
- Tolerance: ±20% at 120Hz, +20°C
- Material: Aluminum oxide dielectric, tin-plated leads
Buy the Premium Series Aluminum Electrolytic Capacitor: 22UF 50V
Enhance your electronic projects with this high-quality aluminum electrolytic capacitor, featuring 22UF capacitance and 50V voltage rating. Its compact size of 7mm body length makes it perfect for space-constrained applications like digital devices, audio systems, and power supplies. The capacitor operates across -40°C to +105°C, providing excellent stability and low leakage current for demanding environments. It supports high-temperature testing and circuit-board cleaning, ensuring reliability and longevity in professional electronic systems. Order online now for quick delivery and superior performance.
Get Premier Series 22UF 50V aluminum electrolytic capacitor today—built for space-saving design and long-lasting durability in compact electronic equipment.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMHR25V226M63X7?
You can click on the BUY or RFQ button to purchase MCMHR25V226M63X7 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMHR25V226M63X7?
You can download the MCMHR25V226M63X7 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMHR25V226M63X7?
MULTICOMP PRO
