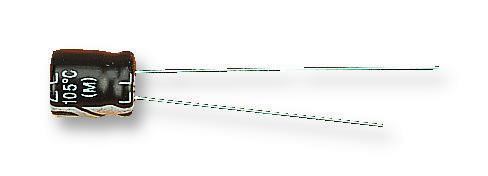

MULTICOMP PRO MCMHR35V336M63X7 Electrolytic Capacitor
The electrolytic capacitor from the MCMHR series is designed for high-density electronic applications such as compact devices and automotive equipment. It features a short body length of only 7mm, making it ideal for space-constrained environments like pocket calculators, mini-audio sets, and VCRs. Operating within a temperature range of -40°C to +105°C, it offers a wide voltage range up to 683V DC and capacitance from 0.1pF to 470uF. The capacitor boasts excellent stability, low leakage current, and solvent proof construction, suitable for circuit-board cleaning with ultrasonic or steam methods, ensuring durability and reliable performance.
MULTICOMP PRO MCMHR35V336M63X7 Electrolytic Capacitor Specifications:
- Operating Temperature Range: -40°C to +105°C
- Rated Working Voltage Range: 6.3V DC to 683V DC
- Nominal Capacitance Range: 0.1pF to 470uF
- Capacitance Tolerance: +20% at +20°C, 120 Hz
- Leakage Current: ≤ 0.01CV or 3uA after two minutes
- Dissipation Factor (Tan δ): Max. 0.24 at 63V, 120Hz, +20°C
- Low Temperature Stability: -25°C/+20°C and -40°C/+20°C with specific Tan δ limits
- High Temperature Loading: Maintains leakage, capacitance, and dissipation factor limits after 1,000 hours at +105°C
- Shelf Life: 500 hours at +105°C with no voltage, same limits as high temperature test
- Solvent Proof: Suitable for ultrasonic and steam cleaning in circuit-board cleaning processes
Buy the Buy multicomp electrolytic capacitor Part Number MCMHR35V336M63X7 Online
Order the high-performance electrolytic capacitor today from multicomp and enjoy fast delivery, reliable quality, and compatibility with compact electronic devices. Designed for demanding applications, this capacitor offers a wide voltage range up to 683V DC and excellent thermal stability. Its compact, 7mm body length makes it ideal for space-constrained environments such as automotive, consumer electronics, and high-density equipment. Trust in multicomp's proven durability, solvent proof construction, and long-term stability for your electronic needs. Purchase now for optimal circuit performance!
Buy multicomp electrolytic capacitor MCMHR35V336M63X7 now and experience unmatched reliability, compact design, and excellent stability for high-density electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMHR35V336M63X7?
You can click on the BUY or RFQ button to purchase MCMHR35V336M63X7 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMHR35V336M63X7?
You can download the MCMHR35V336M63X7 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMHR35V336M63X7?
MULTICOMP PRO
