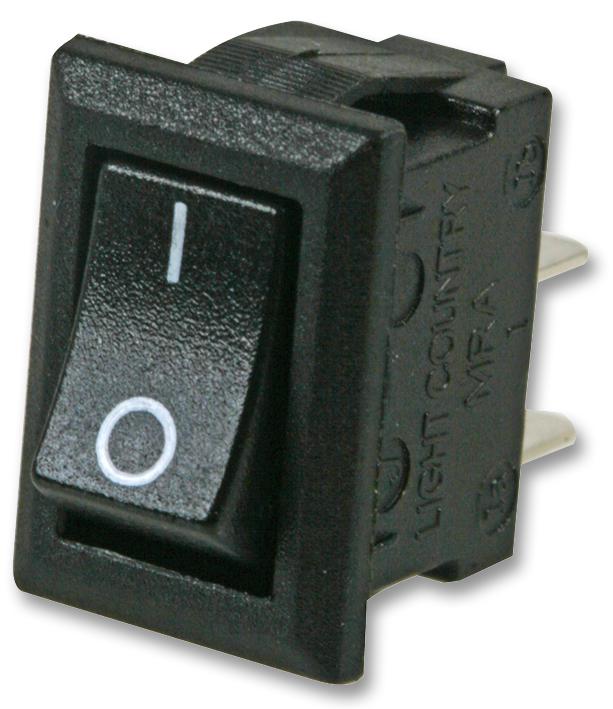

MULTICOMP-PRO MCMRA1KKFTC industrial rocker switch
This non-illuminated rocker switch features a compact rectangular design with SPST on-none-off configuration, suitable for panel mounting. Constructed from durable polyamide 6.6 housing and rocker, it includes silver alloy contacts and brass terminals with silver plating for reliable connections. Capable of handling 3A at 125/250V AC with an electrical endurance of 210,000 cycles, the switch ensures long-lasting performance in various industrial and control applications. Its quick connect terminals facilitate easy installation, and it operates effectively within temperature ranges up to 85°C, making it a versatile automation component.
MULTICOMP-PRO MCMRA1KKFTC industrial rocker switch Specifications:
- Contact Configuration: SPST, On-None-Off
- Actuator: Non-illuminated, Rectangular
- Terminal: Quick Connect Tab
- Electrical Rating: 3A, 125/250V AC
- Electrical Life Endurance: 210000 cycles
- Contact Resistance: <20mΩ
- Insulation Resistance: >1000MΩ
- Dielectric Strength: >1500V/minute
- Temperature Rise: 30°C max
- Ambient Temperature: Terminal Side 10°C to +85°C, Actuating Side 10°C to +55°C
- Material Housing: Polyamide 6.6, Black
- Contacts: Silver Alloy
- Terminal: Brass, Silver Plated
- Switch Function: Momentary, Positions: Left, Center, Right
- Protection Degree: IP20
- Operating Force: 450g ±100g
- Push Forces for Tabs: 22.5kg
- Pull Forces for Tabs: 25kg
- Horizontal Direction Forces: 21.5kg
- Force for Button: 23kg
- Spring Material: Chromated Steel Wire
- Movable Arm: Brass, Silver Plated
Buy the Premier Series Switches Non-Illuminated Rectangular SPST: MCMRA1KKFTC
Purchase the Premier series non-illuminated rectangular rocker switch online today for reliable switching performance in industrial and control systems. Featuring a robust polyamide housing, silver alloy contacts, and quick connect terminals, this switch withstands high temperature ranges up to 85°C and offers a long electrical life of 210,000 cycles. Its compact design ensures easy panel mounting, making it an ideal choice for automation, machinery, and control applications. Secure your supply for efficient, durable operation now.
Buy Premier Series MCMRA1KKFTC now and experience unmatched reliability and performance with a durable construction and easy installation.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCMRA1KKFTC?
You can click on the BUY or RFQ button to purchase MCMRA1KKFTC from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMRA1KKFTC?
You can download the MCMRA1KKFTC datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCMRA1KKFTC?
MULTICOMP-PRO
