MULTICOMP PRO MCMSF1A250V Fast-acting radial fuse

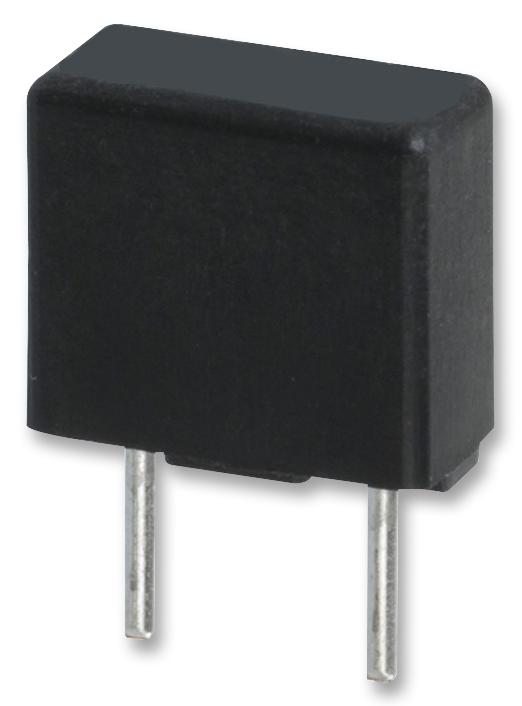

The MCMSF 1A 250V is a fast-acting rectangular fuse rated at 1 Ampere and 250 Volts. It features a thermoplastic base and cap, through-hole mounting with tin-plated alloy pin leads, and a radial leaded case style. The fuse is black in color with a lead diameter of 0.62mm and a lead spacing of 5.08mm. It has a maximum voltage drop of 120mV, a nominal cold resistance of 0.052Ω, and operates within a temperature range of -55°C to 125°C. Suitable for safety applications, this fuse is part of the Multicomp Pro product line, which has a rating of 4.6 out of 5 stars, with a 12-month limited warranty. 96% of customers would recommend it to a friend.
MULTICOMP PRO MCMSF1A250V Fast-acting radial fuse Specifications:
- Voltage Rating: 250V AC
- Current Rating: 1A
- Blow Characteristic: FastActing
- Case Style: Radial Leaded
- Case Material: Black Thermoplastic
- Lead Diameter: 0.62mm
- Lead Spacing: 5.08mm
- External Length / Height: 7.7mm
- External Width: 8.35mm
- External Depth: 4.3mm
- Mounting: Through Hole
- Temperature Range: -55°C to +125°C
- Resistance: Nominal Cold Resistance 0.052Ω
- Voltage Drop: Max 120mV
- Interrupting Ratings: 35A or 10× rated current at 250V AC
Buy the Multicomp 1A 250V – Reliable Fuses for Industrial Applications
Secure your electronic projects with our fast-blow radial fuse rated at 1A and 250V. Designed with a thermoplastic case and tin-plated alloy pins, it features a radial lead style for easy through-hole mounting. This fuse operates efficiently at temperatures from -55°C to 125°C and offers high interrupting ratings, ensuring safety and reliability. Perfect for industrial and safety applications, it provides quick response during overcurrent incidents, protecting your equipment and ensuring operational continuity. Order now through our online store for fast delivery.
Order your multicomp series MCMSF1A250V fuse today and enhance your circuit protection with reliable, fast-blow fuses designed for industrial safety.
