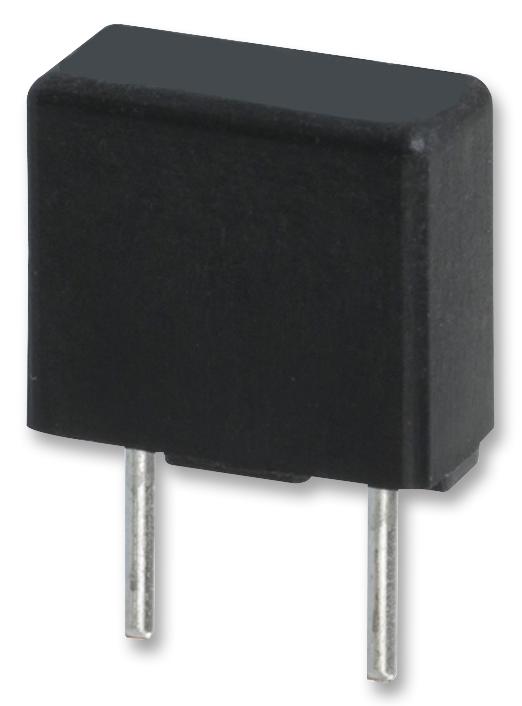

MULTICOMP PRO MCMSF5A250V Radial Fuse
The Multicomp Pro radial fuse is a fast-acting, thermoplastic-encased fuse designed for reliable circuit protection. With a voltage rating of 250V AC, it features a radial leaded case style, external dimensions of 7.7mm length, 8.35mm width, and 4.3mm depth. The fuse has a lead diameter of 0.62mm and a lead length of 222mm with a spacing of 5.08mm, suitable for through-hole mounting. It withstands operating temperatures from -55°C to +125°C and meets MIL-STD vibration, shock, and thermal shock standards, ensuring durability in harsh environments.
MULTICOMP PRO MCMSF5A250V Radial Fuse Specifications:
- Voltage Rating: 250V AC
- Blow Characteristic: FastActing
- Fuse Case Style: Radial Leaded
- Case Material: Thermoplastic
- External Depth: 4.3mm
- External Length / Height: 7.7mm
- External Width: 8.35mm
- Fuse Mounting: Through Hole
- Lead Diameter: 0.62mm
- Lead Length: 222mm
- Lead Spacing: 5.08mm
- Operating Temperature: -55°C to +125°C
- Materials: Black Thermoplastic case, Tin-lead plated alloy pin
- Vibration: MIL-STD-202, Method 201
- Shock: MIL-STD-202, Method 213
- Salt Spray: MIL-STD-202, Method 101
- Insulation Resistance: MIL-STD-202, Method 210
- Resistance to Solder Heat: MIL-STD-202, Method 107
- Thermal Shock: MIL-STD-202, Method 301
- Interrupting Ratings: 35A or 10x rated current at 250V AC
Buy the Buy Multicomp Radial Fuse Part Number MCMSF5A250V Online
Purchase the Multicomp Pro radial fuse online to ensure dependable circuit protection with fast blow characteristics and durable thermoplastic case, suitable for various electronic applications. With a voltage rating of 250V AC, external dimensions of 7.7mm length and 8.35mm width, and a lead length of 222mm, this fuse provides reliable performance across a temperature range of -55°C to +125°C. Its robust construction and compliance with MIL-STD vibration, shock, and thermal standards make it ideal for demanding environments, ensuring safety and longevity in your electrical systems.
Buy Multicomp Radial Fuse MCMSF5A250V now and experience unmatched reliability and circuit protection performance in industrial electronics.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCMSF5A250V?
You can click on the BUY or RFQ button to purchase MCMSF5A250V from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCMSF5A250V?
You can download the MCMSF5A250V datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCMSF5A250V?
MULTICOMP PRO
