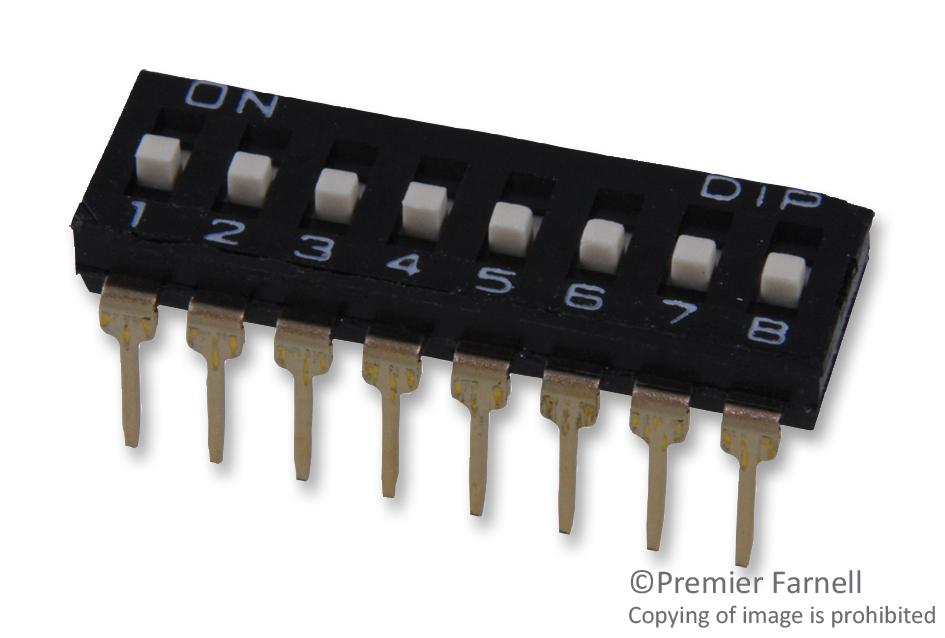

MULTICOMP PRO MCNDI08S 8-Position DIP Switch
The MCNDI-08S is a single-pole single-throw SPST 8-position DIP switch with a low-profile, splay terminal design for automatic insertion. It features gold-plated contacts on nickel for high conductivity and reliable soldering, along with a black high-temperature base and cover. Constructed with ultrasonic welding and insert moulding for flux resistance, it ensures durability. Its design allows for vapour phase and IR-reflow soldering, with an insulation resistance of 100 MΩ at 500V and dielectric strength of 500VAC for one minute. Suitable for industrial automation, control systems, and communication equipment, this switch supports robust performance and high reliability.
MULTICOMP PRO MCNDI08S 8-Position DIP Switch Specifications:
- Contact Arrangement: SPST
- Number of Poles: 8
- Terminal Type: Splay
- Contact Rating: 25mA, 24VDC
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 100MΩ Min. at 500V
- Dielectric Strength: 500V AC/1 minute
- Operating Temperature: -20°C to +85°C
- Storage Temperature: -40°C to +85°C
- Travel: > 1mm
- Operating Force: 1,000gf max.
- Material: Gold-plated contacts, nylon base and cover
- Termination: Splay terminals for automation use
- Solderability: Vapour phase and IR-reflow compatible
- Dimensions: 21.26 mm length, 17.78 mm width, typical for 8-pole models
- Construction: Insert moulding, ultrasonic welding, flux resistant
Buy the Multicomp Series MCNDI 8-Position SPST DIP Switch: MCNDI-08S
Get your Multicomp Series MCNDI-08S DIP switch online today to enjoy high reliability, excellent soldering performance, and versatile functionality for industrial automation, process control, and communication projects. Featuring gold-plated contacts, robust construction, and a splay terminal design, this switch ensures easy automation integration and long-term durability. With its insulated, flux-resistant design supporting vapor phase and IR-reflow soldering, it provides dependable operation even in demanding environments. Purchase now and enhance your control systems with this high-quality, reliable switch suited to various industrial applications.
Order your Multicomp Series MCNDI-08S today and secure a reliable, high-performance switch ideal for industrial automation and control systems.
Frequently Asked Questions
Where can I buy MULTICOMP PRO MCNDI08S?
You can click on the BUY or RFQ button to purchase MCNDI08S from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDI08S?
You can download the MCNDI08S datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of MCNDI08S?
MULTICOMP PRO
