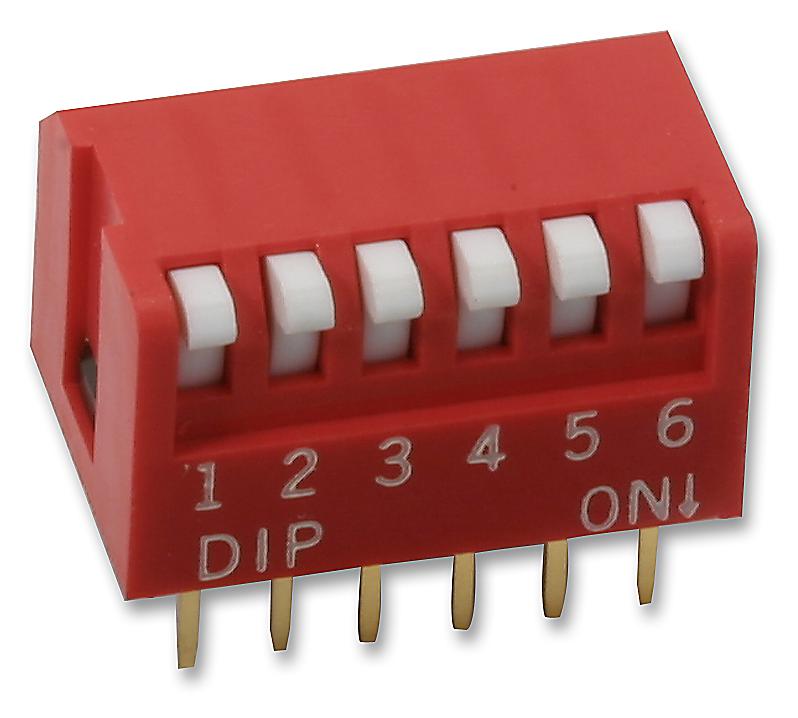

MULTICOMP-PRO MCNDP06V DIP Switch
This industrial-grade DIP switch features a piano-type design with 6 positions, push-down operation, and a vivid red cover. Made with thermoplastic PBT UL 94V-0 for lever, slider, and cover, and high-quality copper alloy contacts gold-plated for durability. It offers a contact rating of 100mA at 50V DC for non-switching and 25mA at 24V DC for switching, ensuring reliable performance in control systems. Suitable for extensive use in automation, computer peripherals, and control applications, it supports operation temperatures from -40°C to +85°C, with an operating life of 2000 cycles.
MULTICOMP-PRO MCNDP06V DIP Switch Specifications:
- Lever: Thermoplastic PBT UL 94V-0 — White
- Slider: Thermoplastic PBT UL 94V-0 — White
- Cover: Thermoplastic PBT UL 94V-0 — Red
- Contact Material: Copper Alloy, Gold Plated
- Terminal Material: Brass, Gold Plated
- Base Material: Thermoplastic PA66 UL 94V-0 — Black
- Contact Rating: Non-Switching 100mA, 50V DC; Switching 25mA, 24V DC
- Contact Resistance: 50mΩ max
- Insulation Resistance: 100MΩ min at 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Operating Force: 400gf max.
- Travel: 2.25°
- Operating Life: 2000 cycles
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +85°C
- Soldering Temperature: Max. 350°C, Max. 5 seconds
Buy the Multicomp Series DIP Switch: 6-Position, Push-Down, Red Cover - MCNDP-06V
Order the Multicomp Series DIP Switch MCNDP-06V online today and enhance your control panel with a durable, reliable switch designed for long life. Featuring high-quality gold-plated contacts and thermoplastic construction, this 6-position switch is perfect for automation, peripherals, and industry applications. Its seamless push-down operation and temperature resilience from -40°C to +85°C ensure consistent performance in demanding environments. Available with fast shipping, secure checkout, and trusted worldwide distributors—upgrade your system now with this essential control component.
Buy Multicomp Series DIP Switch MCNDP-06V now and experience unmatched reliability and performance in industrial control systems.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO MCNDP06V?
You can click on the BUY or RFQ button to purchase MCNDP06V from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part MCNDP06V?
You can download the MCNDP06V datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of MCNDP06V?
MULTICOMP-PRO
